SKU: 100-1-BB-NO26-RENOLD

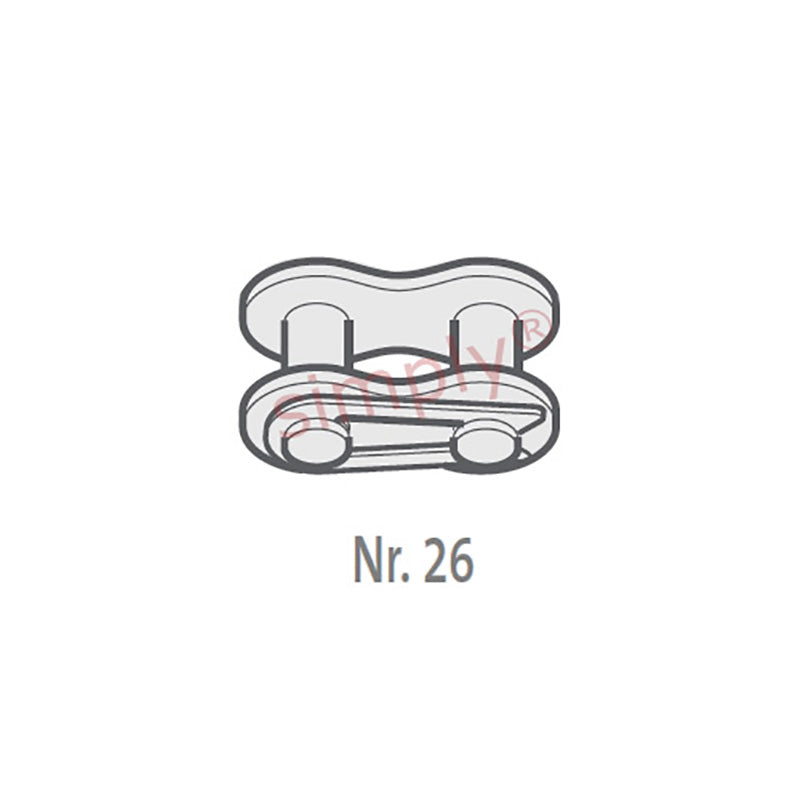

Renold Blue Box 100-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Renold Blue Box 100-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Out of stock
Description
Description
| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.17mm |
| Plate Width Inner max (E) | 4.06mm |
| Plate Width Outer max (F) | 4.06mm |
| Pin Diameter max (G) | 9.54mm |
| Pin Length max (H2) | 39.7mm |
| Connecting Link Extension max (J) | 4.2mm |
| ISO606 Tensile Strength min | 87000 N |
| Weight | 0.04kg/m |
