SKU: 10-B-30-08-ROLL-REN

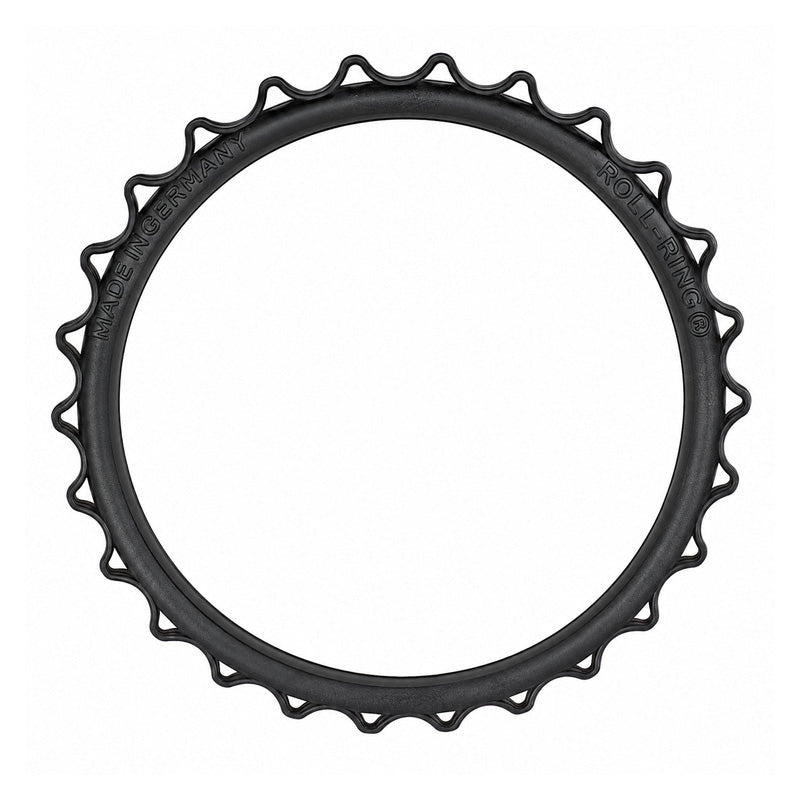

Renold 30 Tooth 10-B Roll Ring for 5/8 inch Pitch - Ambient Temperature -30 to+50°C
Renold 30 Tooth 10-B Roll Ring for 5/8 inch Pitch - Ambient Temperature -30 to+50°C
Out of stock
Description
Description
|
Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to requirements of cold temperatures for flexibility and intensified damping characteristics. |
- Brand / Quality:
- Renold - High Quality
- Teeth:
- 30
- Pitch:
- 5/8 inches
Technical
Technical
| do | 148mm |
|---|---|
| di | 124.6mm |
| s | 33mm |
| A | 177mm |
| D = do-s | 115mm |
| Chain Dimension - p x b1- inches | 5/8x3/8 |
| Max Static Expansive Force - N** | 20 |
| Maximum Chain Speed m/s | 10.1 |
| Ambient Temperature (°C) | -30 to+50 |
| Weight (kg) | 0.03 |
