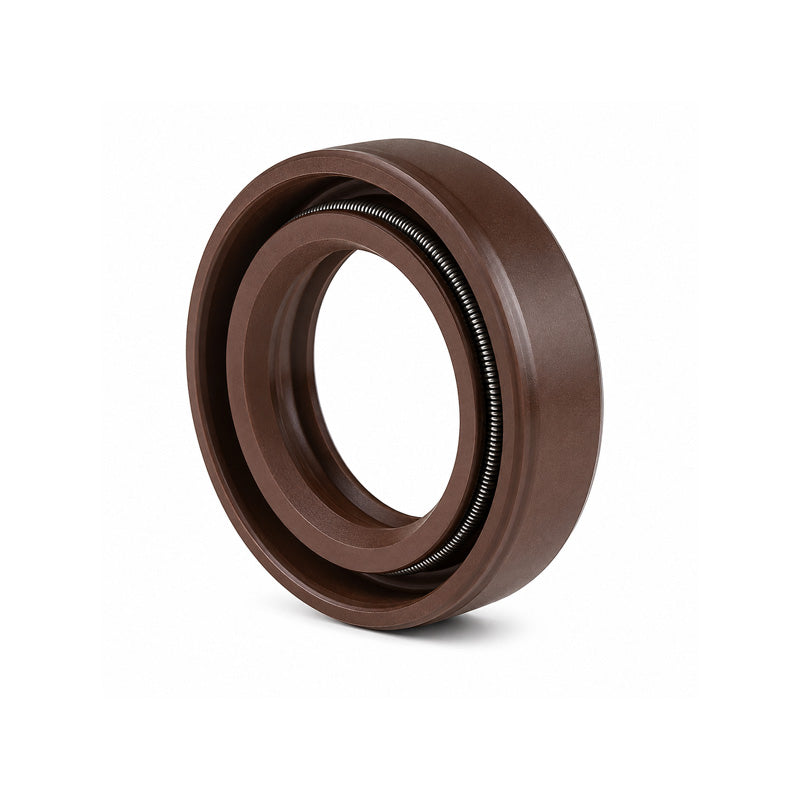

NAK 1.5x2.25x0.375 inch HIGH PRESSURE FKM Rubber Double Lip Rotary Shaft Oil Seal with Stainless Spring TDN1 - Allow 7-10 Days

NAK N1..11 FKM Pressure Resistant Oil Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. TCN1, TCN11 and TDN1 type seals feature a special design of the short flex section and special material and structural designs making these oil seals best suited for high-pressure applications. These types feature a sealing FKM rubber lip on the inside diameter as well as an external dust lip. These oil seal types feature a garter spring which allows some give to prevent a build-up of friction. (Seals under 5mm width may not always feature a spring.)
Benefits: High-temperature range, Chemical resistance, Higher wear resistance, Lower drag coefficient.

Brand / Quality:

NAK - High Quality

Inside Diameter:

38.1mm = 1.5 (1-1/2) inch

Outside Diameter:

57.15mm = 2.25 (2-1/4) inch

Width:

9.53mm = 0.375 (3/8) inch

Seals / Shields:

FKM

Style:

TDN1

Colour:

Brown
