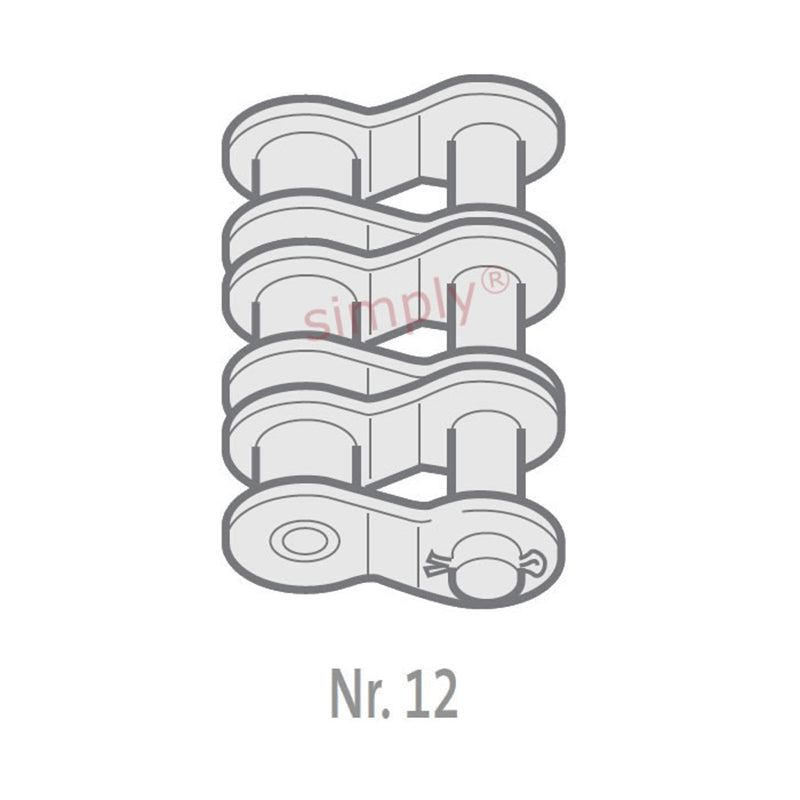

• Renold SD 08B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
1 1

SKU: 08B-3-SD-NO12-RENOLD

Renold SD 08B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch

Renold SD 08B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
€11,95 ex VAT
€11,95 ex VAT
Sale Sold out

In stock

Price Break
2+ €8,93
5+ €8,43
10+ €8,33
29+ €8,23
49+ €8,13
75+ €8,03
100+ €7,53
200+ €7,42
250+ €7,32
500+ €7,22
1000+ €7,02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BS_NO12T_DESC
Brand / Quality:
Renold - High Quality
Pitch:
12.7mm = 0.5 (1/2) inch
Technical
Pitch (A) 0.5 inch
Pitch (A) 12.7mm
Inside Width min (B) 7.75mm
Roller Diameter max (C) 8.51mm
Plate Height max (D) 11.8mm
Plate Width Inner max (E) 1.5mm
Plate Width Outer max (F) 1.5mm
Pin Diameter max (G) 4.45mm
Pin Length max (H1) 44.9mm
Connecting Link Extension max (J) 3.9mm
ISO606 Tensile Strength min 51150 N
Weight 0.009kg/m
