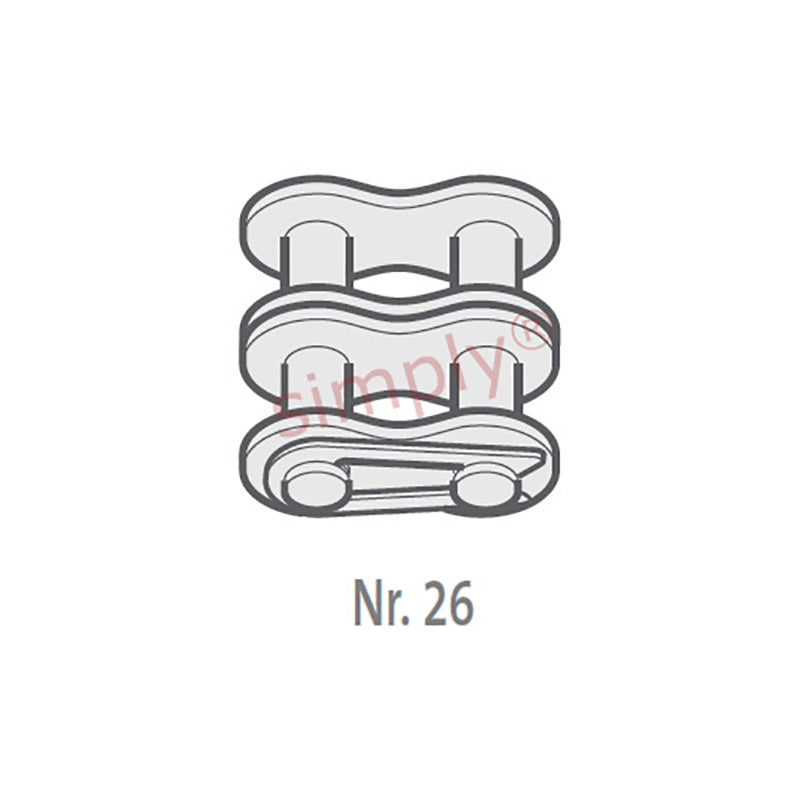

• Renold SYNO 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
1 1

SKU: 08B-2-SNX-NO26-RENOLD

Renold SYNO 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch

Renold SYNO 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
€18,95 ex VAT
€18,95 ex VAT
Sale Sold out

In stock

Price Break
2+ €14,13
5+ €13,33
10+ €13,18
29+ €13,02
49+ €12,86
75+ €12,70
100+ €11,91
200+ €11,75
250+ €11,59
500+ €11,43
1000+ €11,11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BS_NO26D_DESC
Brand / Quality:
Renold - High Quality
Pitch:
12.7mm = 0.5 (1/2) inch
Technical
Pitch (A) 0.5 inch
Pitch (A) 12.7mm
Inside Width min (B) 7.75mm
Roller Diameter max (C) 8.51mm
Plate Height max (D) 11.7mm
Plate Width Inner max (E) 1.55mm
Plate Width Outer max (F) 1.55mm
Pin Diameter max (G) 4.45mm
Pin Length max (H2) 30.4mm
Connecting Link Extension max (J) 2mm
Transverse Pitch nom (K) mm
ISO606 Tensile Strength min 31100 N
Weight 0.006kg/m
