SKU: WMU.121425

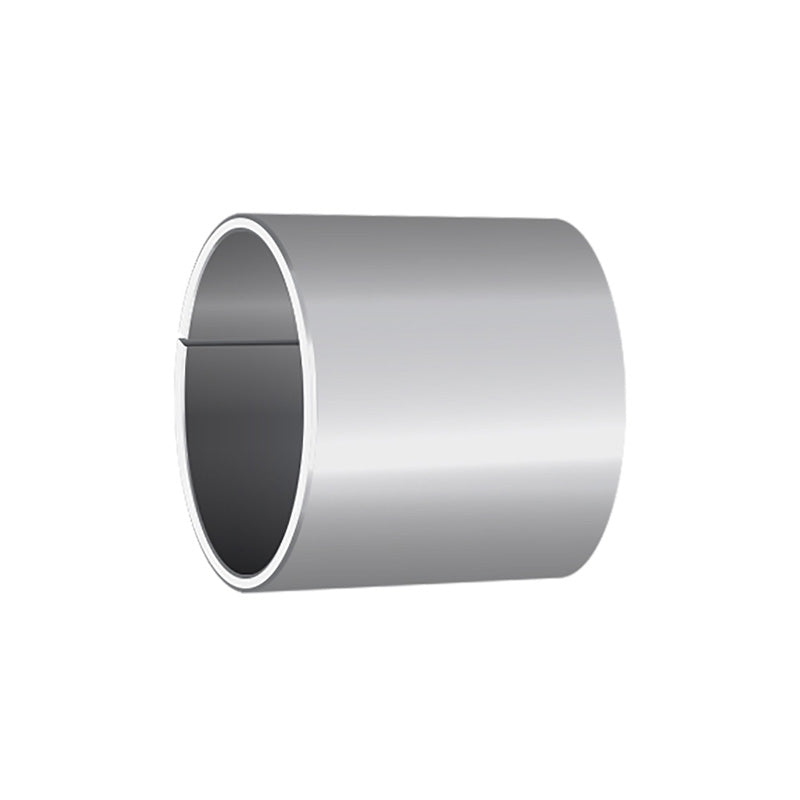

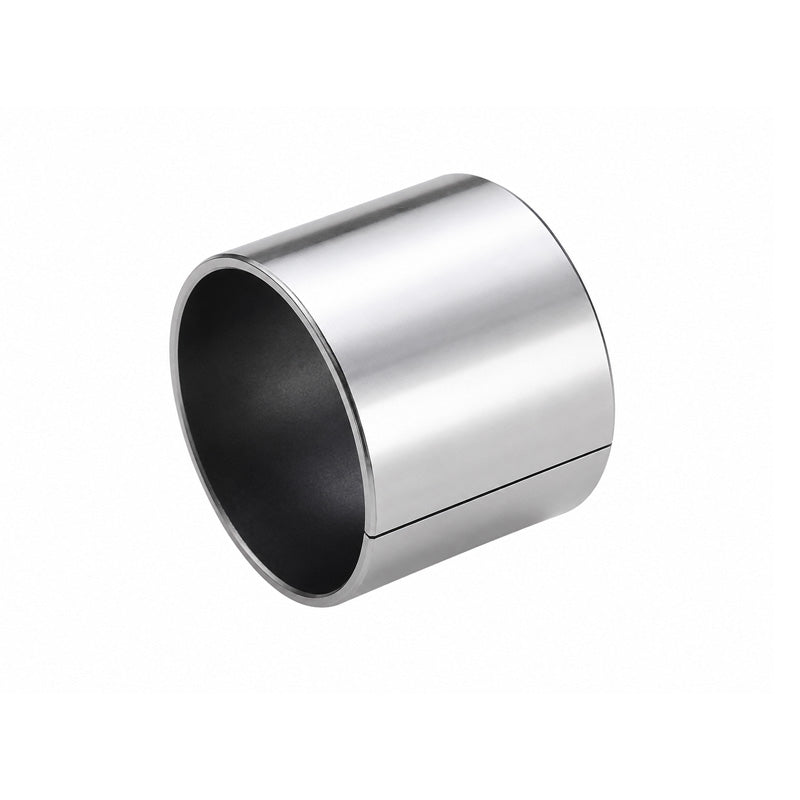

WMU121425 Metric Wrapped PTFE Lined Plain Bush 12x14x25mm
- Regular price
- €1,95 ex VAT
- Sale price
- €1,95
- Regular price
-
Quantity Price Breaks
WMU121425 Metric Wrapped PTFE Lined Plain Bush 12x14x25mm
- Regular price
- €1,95 ex VAT
- Sale price
- €1,95
- Regular price
-
Description
Wrapped PTFE Lined Plain Bushes:These bushes are suitable for dry-running, low-friction, and low-wear applications. Our range of WMU bushes have excellent sliding characteristics, forming a transfer film that can protect the mating metal surface. These PTFE bushes are made up of a lead-free polymer fibre mixture which forms an initial transfer film, creating an oxide-type solid lubricant on the bearing surface. Sintered bronze powder enhances thermal conductivity and acts as a reservoir for the PTFE mixture, whilst the steel backing ensures high load capacity and efficient heat dissipation. The copper/tin plating adds excellent corrosion resistance, making these wrapped bearings versatile and durable for various applications.
Benefits: Self lubricating, corrosion resistant, chemical resistant
Technical
| Inside Diameter (d) | = | 12mm |
| Outside Diameter (D) | = | 14mm |
| Length (B) | = | 25mm |
| Overall Length Tolerance | = | 24.75mm min to 25.25mm max |
| Recommended Housing Size Tolerance | = | 14mm min to 14.018mm max H7 |
| Shaft Diameter Tolerance | = | 11.966mm min to 11.984mm max |
| Inside Diameter when Fitted Tolerance | = | 11.99mm min to 12.058mm max |
| Inside Chamfers Tolerance | = | 0.1mm min to 0.5mm max |
| Outside Chamfers Tolerance | = | 0.2mm min to 1mm max |
| Max PV - Dry | = | 1.8 N/mm squared x m/s |
| Max PV - Oiled | = | 2.8 N/mm squared x m/s |
| Max Static Load | = | 250 N/mm squared |
| Max Dynamic Load | = | 140 N/mm squared |
| Max Sliding Speed - Dry | = | 2.5 m/s |
| Max Sliding Speed - With Oil | = | 5 m/s |
| Operating Temperature | = | -200 to 280 Deg C |
| Thermal Conductivity | = | 42 W/mk |
| Coefficient of Friction - Dry | = | 0.02 to 0.20 |
| Coefficient of Friction - With Oil | = | 0.02 to 0.15 |
| Recommended Shaft Finish (Ra) | = | 0.04 max N5 |
| Recommended Shaft Hardness (HB) | = | 200 min |
