SKU: UJSPL50XSOL-MB

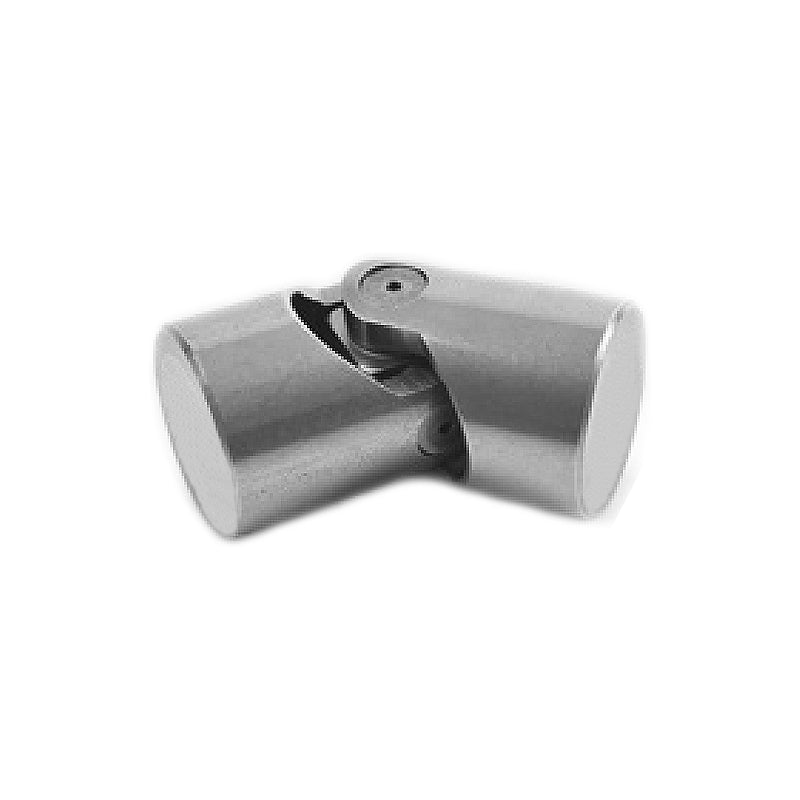

Major Brand UJSPL50XSOL Steel Unbored Long Universal Single Joint with Plain Bearing and Solid Ends 50x140mm
- Regular price
- €96,95 ex VAT
- Sale price
- €96,95
- Regular price
-
Quantity Price Breaks
Major Brand UJSPL50XSOL Steel Unbored Long Universal Single Joint with Plain Bearing and Solid Ends 50x140mm
- Regular price
- €96,95 ex VAT
- Sale price
- €96,95
- Regular price
-
Description
UJSPL Steel Unbored Long Universal Long Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This unbored long universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
Technical

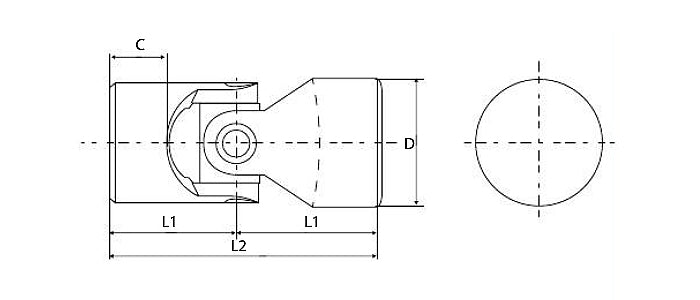

| Bore | = | Unbored |
| Diameter D | = | 50mm |
| Overall length L2 | = | 140mm |
| Pivot centre L1 | = | 70mm |
| Hub length C | = | 42mm |
| Maximum working angle | = | 45 degrees |
| Maximum speed | = | 1000 rpm |
| Maximum power | = | 6kW |
| Maximum torque | = | 600 Nm |
| Gaiter type | = | UJG5M50 |
| Weight KG | = | 2 kg |
