SKU: UCFX.12
UCFX12 Metric Four Bolt Cast Iron Square Housing with 60mm Bore Insert
- Regular price
- €88,95 ex VAT
- Sale price
- €88,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€79,17
19+
€74,72
29+
€73,83
39+
€72,94
49+
€72,05
74+
€71,16
99+
€66,71
199+
€65,82
249+
€64,93
499+
€64,04
999+
€62,27
SKU:
UCFX.12
UCFX12 Metric Four Bolt Cast Iron Square Housing with 60mm Bore Insert
- Regular price
- €88,95 ex VAT
- Sale price
- €88,95
- Regular price
-
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |

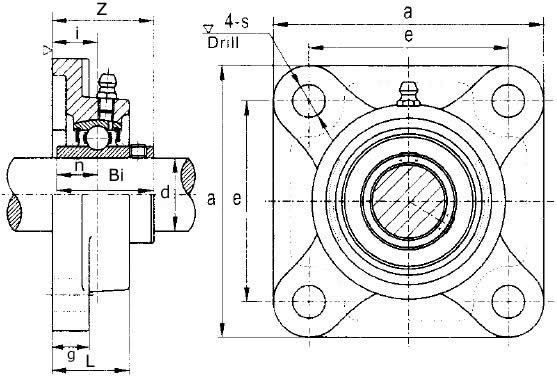

Technical
| d | = | 60mm |
| a | = | 187mm |
| e | = | 149mm |
| i | = | 34mm |
| g | = | 21mm |
| L | = | 59mm |
| s | = | 19mm |
| Z | = | 73.7mm |
| Bi | = | 70.7mm |
| n | = | 25.4mm |
| Bolt Size | = | M16 |
| Weight | = | 5.5 kg |
| Dynamic load | = | 4480 kgf |
| Static load | = | 3470 kgf |
| Rec max speed | = | 2450 rpm |
