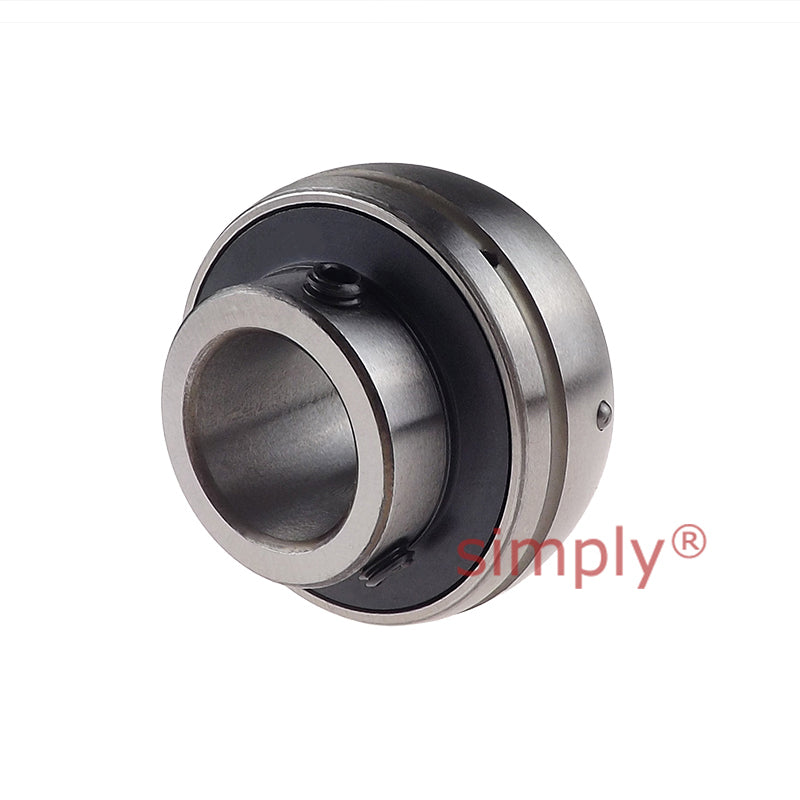

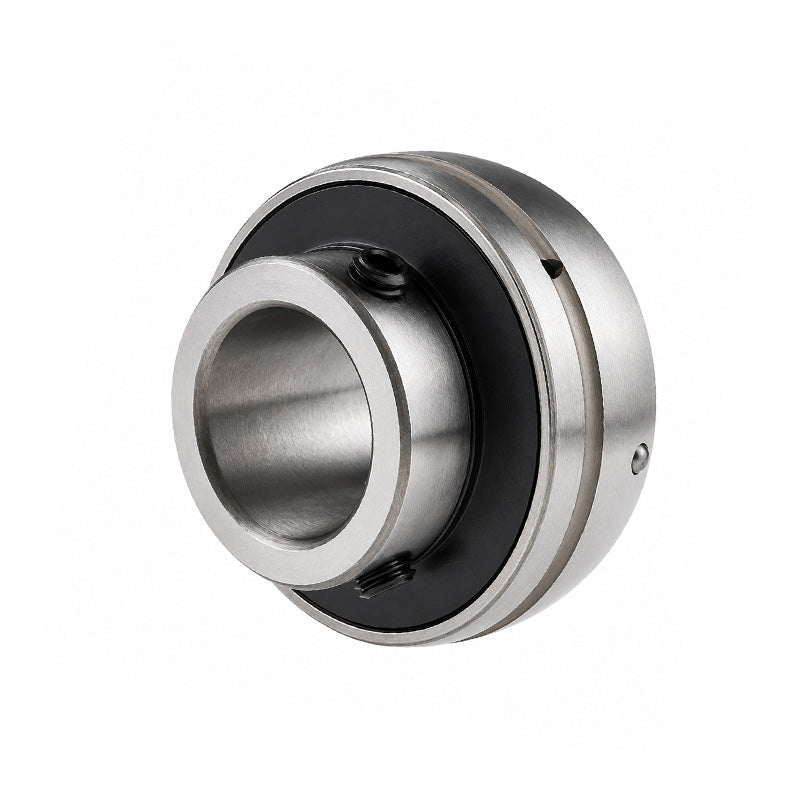

UC210HT270 High Temperature 270C Bearing Insert with 50mm Bore 90mm Outside Dia

SKU: UC.210.HT270

UC210HT270 High Temperature 270C Bearing Insert with 50mm Bore 90mm Outside Dia

€40,95 ex VAT
€40,95
ex VAT
Equivalent to: UC210HT270
In stock

Quantity Price Breaks

3 €36,45
5 €34,40
10 €33,99
15 €33,58
20 €33,17
30 €32,76
40 €30,71
50 €30,30
60 €29,89
75 €29,48
100 €28,67
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UC210HT270 High Temperature 270C Bearing Insert with 50mm Bore 90mm Outside Dia
SKU: UC.210.HT270

UC210HT270 High Temperature 270C Bearing Insert with 50mm Bore 90mm Outside Dia

€40,95 ex VAT
€40,95
ex VAT

Description

UC High Temperature Insert: High Temperature UC270C bearings are made of AISI 52100 steel with a Manganese Phosphate surface treatment, Increased radial clearance to compensate for thermal expansion, greased with Molyguard CF-2 grease from -35 deg C to 270ºC. These bearings are commonly used in Brick Manufacturing kiln carts, Ceramic industry kilns, High temperature rollers, Steel Manufacturing, Glass Manufacturing and many other applications where heat may affect the use and life of the bearing.
Benefits: High temperature resilience, Cost effective replacement insert, re-lubricatable, grub screw fixing

Technical

d = 50mm
D = 90mm
Bi = 51.6mm
Be = 24mm
n = 19mm
m = 32.6mm
G = 10mm
Grub Screw = M10x1
Dynamic Load = 2750 kgf
Static Load = 2020 kgf
Weight = 0.8 kg
Turns per Min = 85
Temp = 270 Deg C
