SKU: UC.205

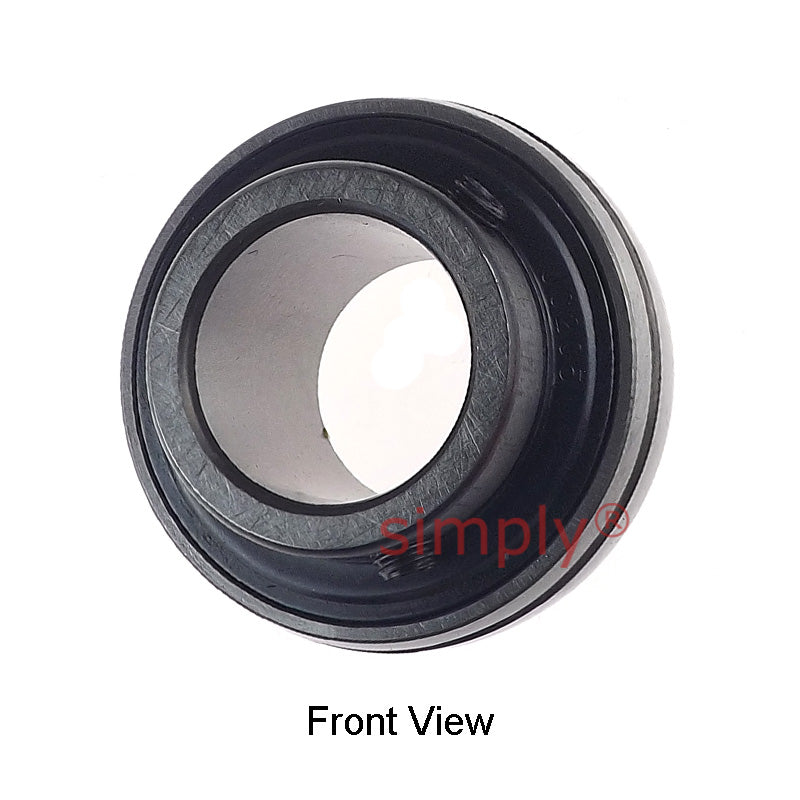

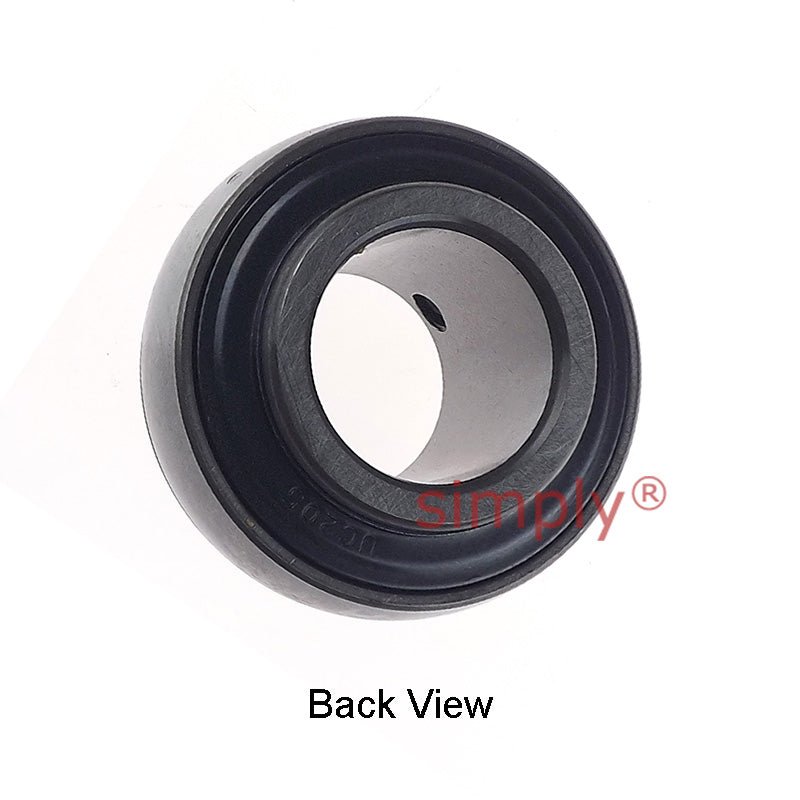

UC205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
- Regular price
- €6,95 ex VAT
- Sale price
- €6,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€6,19
19+
€5,84
29+
€5,77
39+
€5,70
49+
€5,63
74+
€5,56
99+
€5,21
199+
€5,14
249+
€5,07
499+
€5,00
999+
€4,87
SKU:
UC.205
UC205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
- Regular price
- €6,95 ex VAT
- Sale price
- €6,95
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 25mm |
| D | = | 52mm |
| Bi | = | 34mm |
| Be | = | 17mm |
| n | = | 14.3mm |
| m | = | 19.7mm |
| G | = | 5.5mm |
| Grub screw | = | M6x1 |
| Weight | = | 0.2 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
| Rec max speed | = | 6250 rpm |
