SKU: TWIM15/230V-SKF

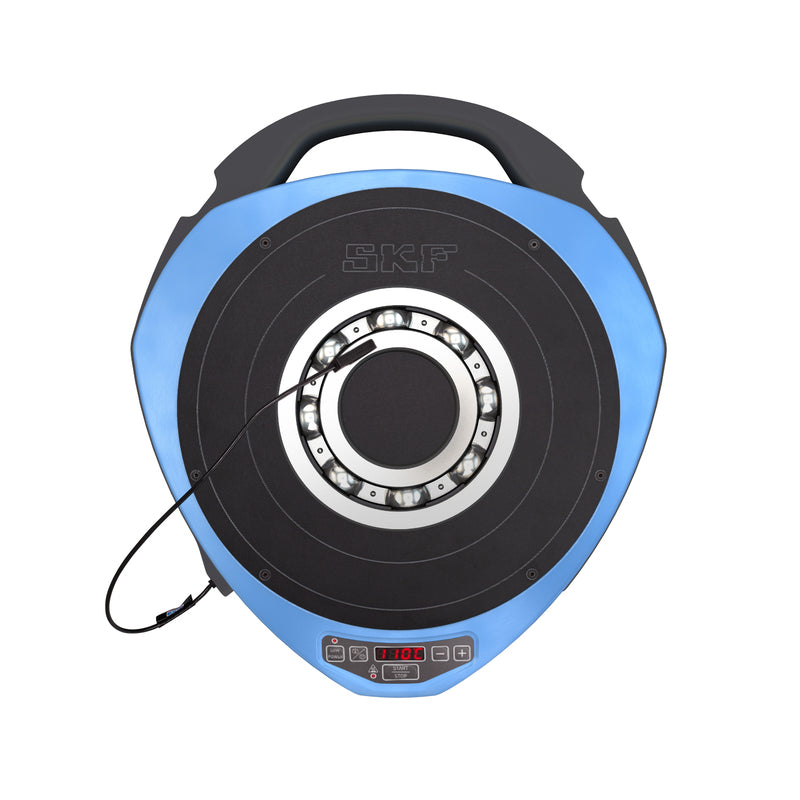

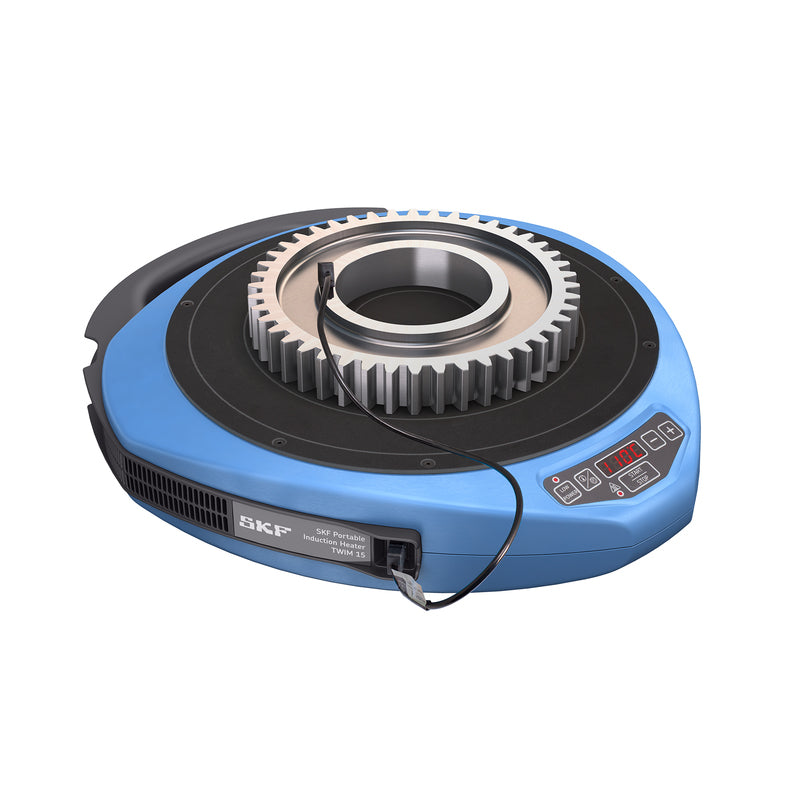

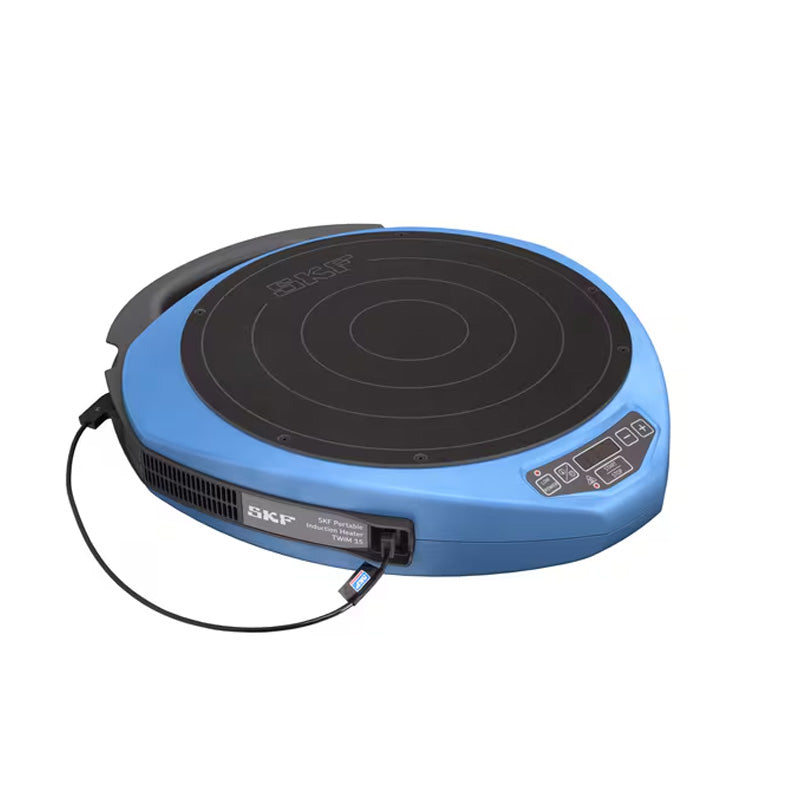

SKF TWIM15/230V Bearing Induction Heater 230V for up to 20kg
- Regular price
- €3.018,95 ex VAT
- Sale price
- €3.018,95
- Regular price
-
Quantity Price Breaks
SKF TWIM15/230V Bearing Induction Heater 230V for up to 20kg
- Regular price
- €3.018,95 ex VAT
- Sale price
- €3.018,95
- Regular price
-
Description
SKF TWIM-15 Bearing Heater: The SKF portable induction heater TWIM 15 is designed to heat up roller bearings that are mounted with an interference fit onto a shaft. Heating the bearing causes it to expand, which eliminates the need to use force during installation. Generally, using the TWIM 15 to generate a 90 deg C (162 F) temperature difference between the bearing and shaft is sufficient to enable installation. In addition, the TWIM 15 can be used to heat other ring-shaped, metallic components, providing flexibility of use. Utilizing electrical power, the TWIM 15 features glass-fiber, high-temperature-resistant plastic construction that allows a low temperature difference between the inner and outer rings of the bearing. This helps to reduce internal tensions that are generated due to excessive thermal expansion of the inner ring compared to the outer ring. The unit has a user-friendly LED control panel that requires no special training and is simple to understand. The panel is used to regulate temperature and also indicates that the TWIM 15 is operational. This unit is capable of heating bearings up to 20kg and is avaialble in two versions: 110V/60Hz - 230V/50hZ.
Benefits: Portable, No support yokes required, User-friendly, detects bearing size and heats appropriately
Note: This is a 230 Volt Heater
