SKU: TBS-T-12B-19

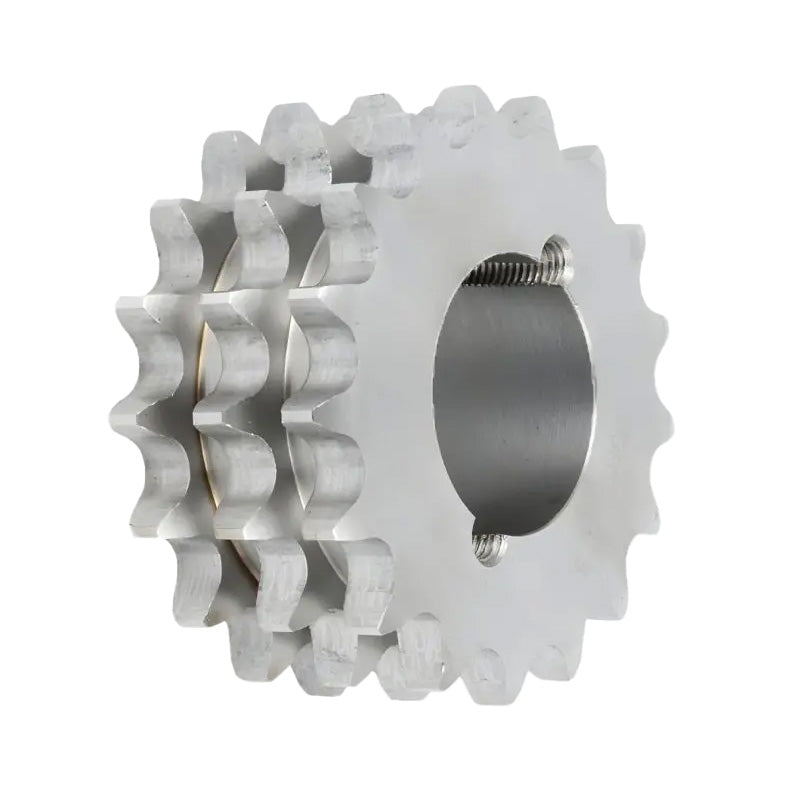

19 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- €55,95 ex VAT
- Sale price
- €55,95
- Regular price
-
Not in stock
Quantity Price Breaks
5
€49,80
9
€47,00
19
€46,44
29
€45,88
49
€45,32
74
€44,76
99
€41,96
199
€41,40
249
€40,84
499
€40,28
999
€39,17
SKU:
TBS-T-12B-19
19 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- €55,95 ex VAT
- Sale price
- €55,95
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

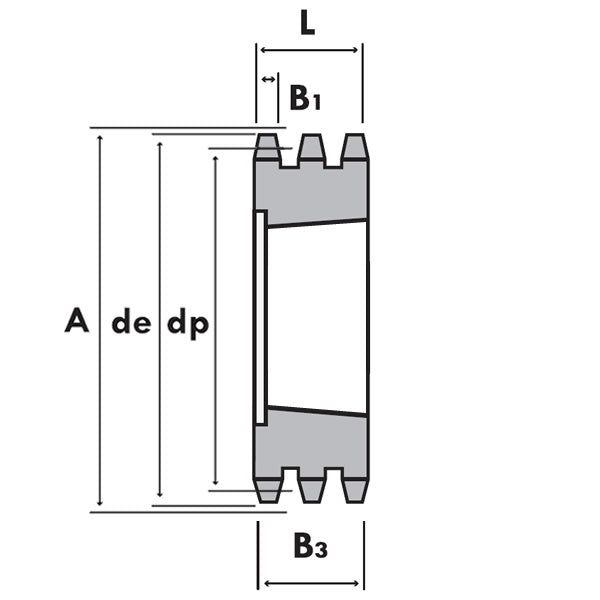

Technical
| No. of Teeth | = | 19 |
| Pitch Diameter dp | = | 115.75mm |
| Outer Diameter de | = | 124mm |
| Diameter Over Chain A | = | 132mm |
| Hub Diameter N | = | mm |
| Tooth Width B3 | = | 49.8mm |
| Bore Length L | = | 49.8mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=2012+taperlock" | = | > |
| 2012< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 3.045 kg | = | N/A |
