SKU: TBS-S-16B-19

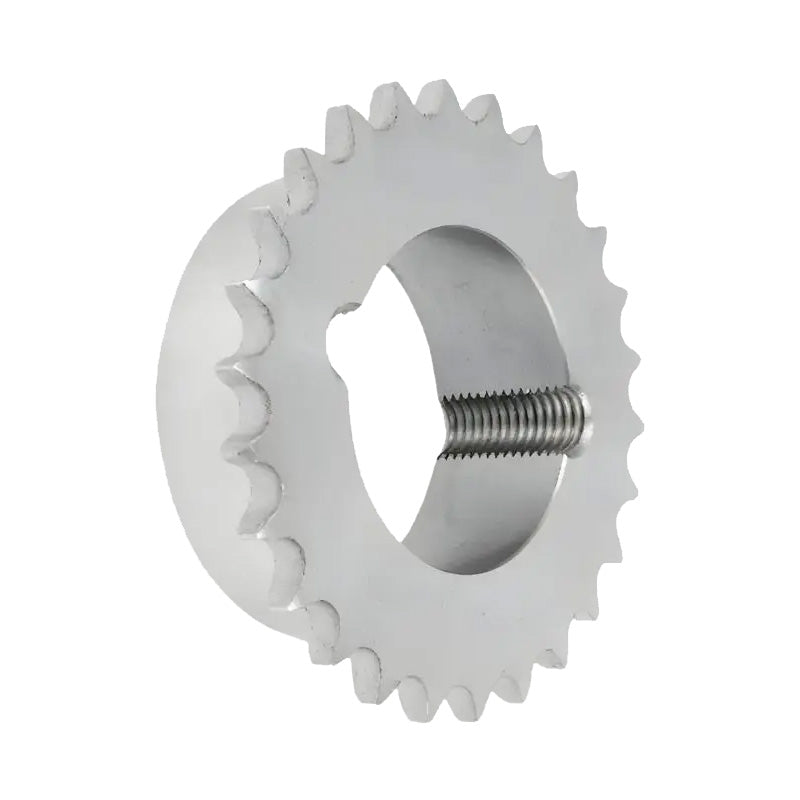

19 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
- Regular price
- €62,95 ex VAT
- Sale price
- €62,95
- Regular price
-
In stock
Quantity Price Breaks
5
€56,03
9
€52,88
19
€52,25
29
€51,62
49
€50,99
74
€50,36
99
€47,21
199
€46,58
249
€45,95
499
€45,32
999
€44,07
SKU:
TBS-S-16B-19
19 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
- Regular price
- €62,95 ex VAT
- Sale price
- €62,95
- Regular price
-
Description

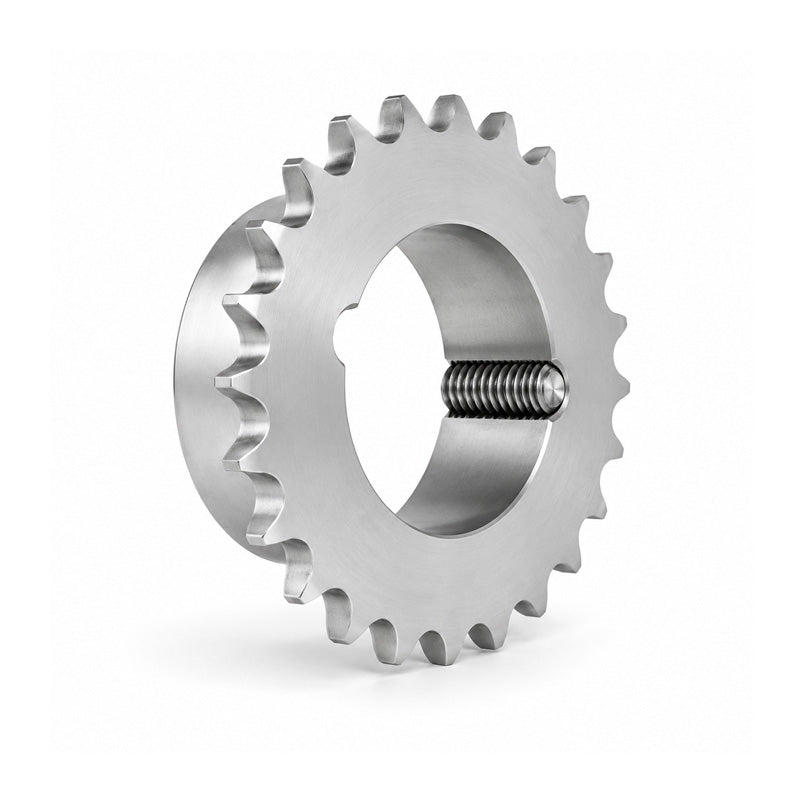

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

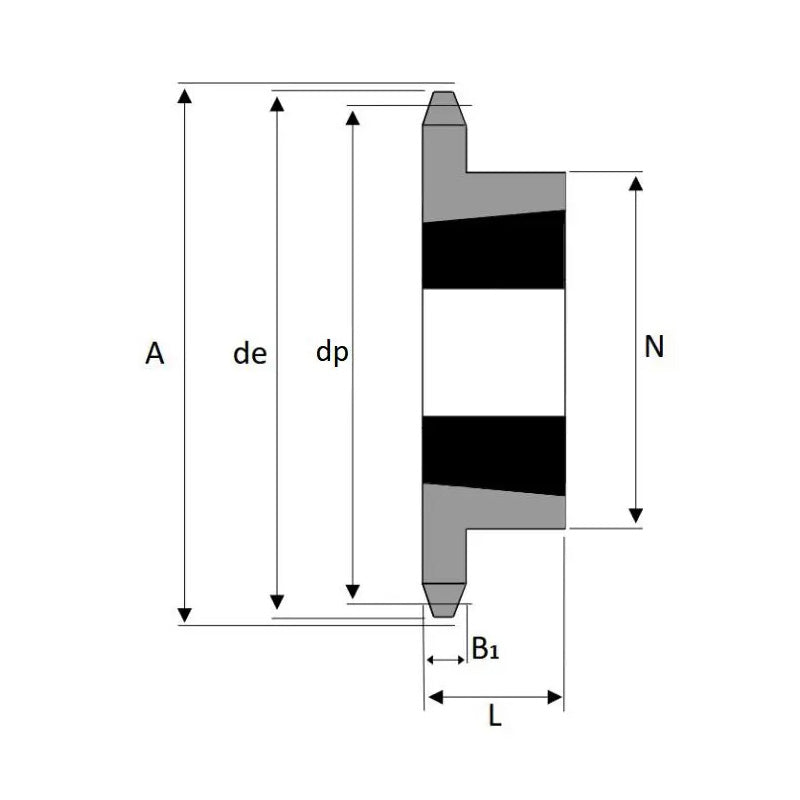

Technical
| Tooth Radius r3 | = | 26mm |
| Chamfer c | = | 2.5mm |
| Tooth Width b1 | = | 15.8mm |
| Tooth Width B1 | = | 16.2mm |
| Tooth Width B2 | = | 47.7mm |
| Tooth Width B3 | = | 79.6mm |
| Pitch | = | 25.4mm |
| Width Between Inner | = | 17.02mm |
| Roller Diameter | = | 15.88mm |
| No. of Teeth | = | 19 |
| Outer Diameter de | = | 165.2mm |
| Pitch Diameter dp | = | 154.33mm |
| Hub Diameter dm | = | 108mm |
| Length Through Bore A | = | 45mm |
| Reference | = | 81-19 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2517+tapered+locking+bush> | = | 2517 Click Here< |
| /a> | = |
