SKU: TBS-DS-16B-14

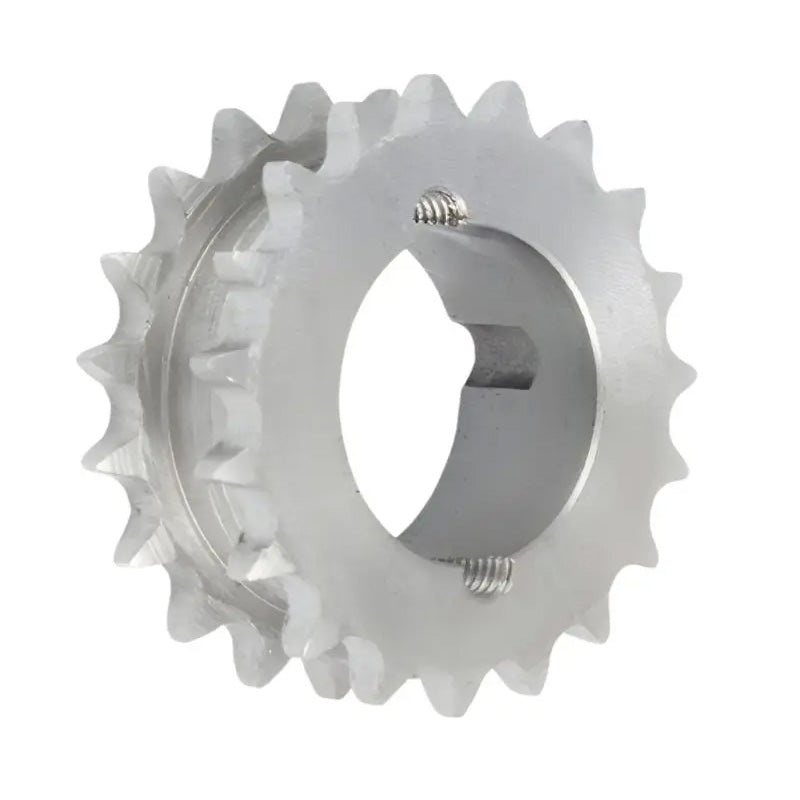

14 Tooth 16B Tapered Bore Double Simplex Sprocket 1 inch Pitch Chain
- Regular price
- €65,95 ex VAT
- Sale price
- €65,95
- Regular price
-
Not in stock
Quantity Price Breaks
5
€58,70
9
€55,40
19
€54,74
29
€54,08
49
€53,42
74
€52,76
99
€49,46
199
€48,80
249
€48,14
499
€47,48
999
€46,17
SKU:
TBS-DS-16B-14
14 Tooth 16B Tapered Bore Double Simplex Sprocket 1 inch Pitch Chain
- Regular price
- €65,95 ex VAT
- Sale price
- €65,95
- Regular price
-
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

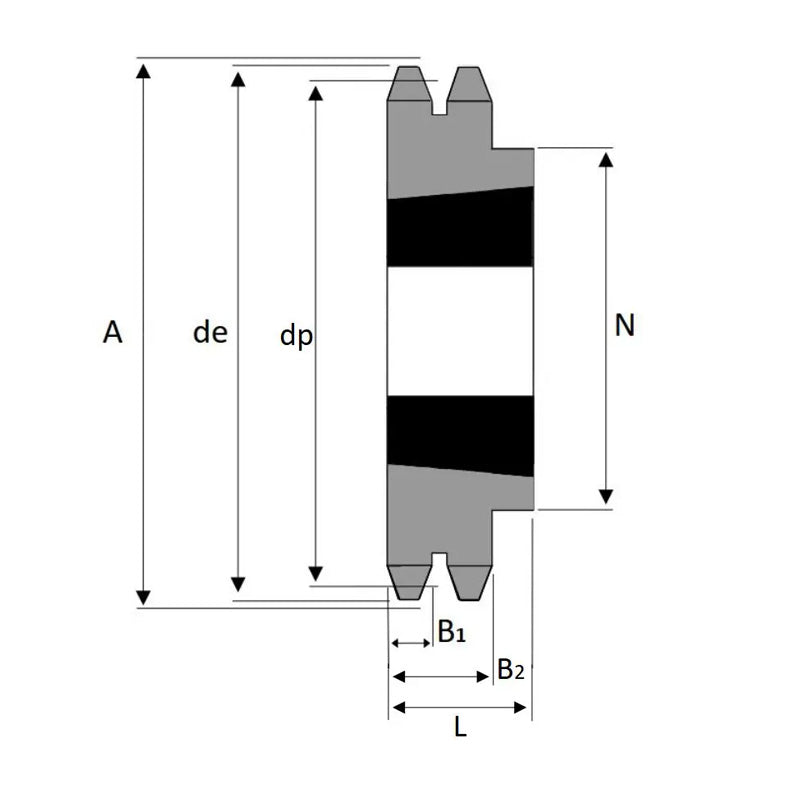

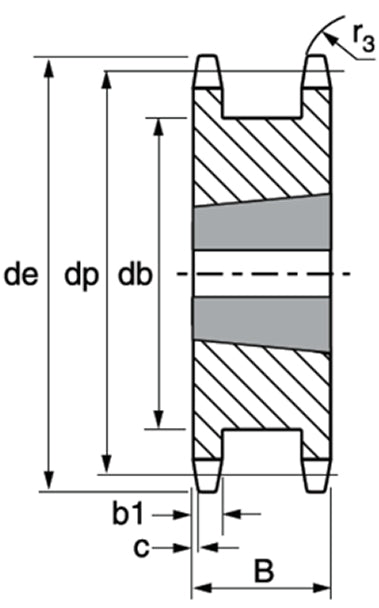

Technical
| No. of Teeth | = | 14 |
| Pitch Diameter dp | = | 114.15mm |
| Outer Diameter de | = | 125mm |
| Width B | = | 63.5mm |
| Hub Diameter N | = | 88mm |
| Chamfer C | = | 2.5mm |
| Tooth Radius r3 | = | 26mm |
| Tooth Width b1 | = | 16.2mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=2012+taperlock" | = | > |
| 2012< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 1.75 kg | = | N/A |
