SKU: TA.5525.Z

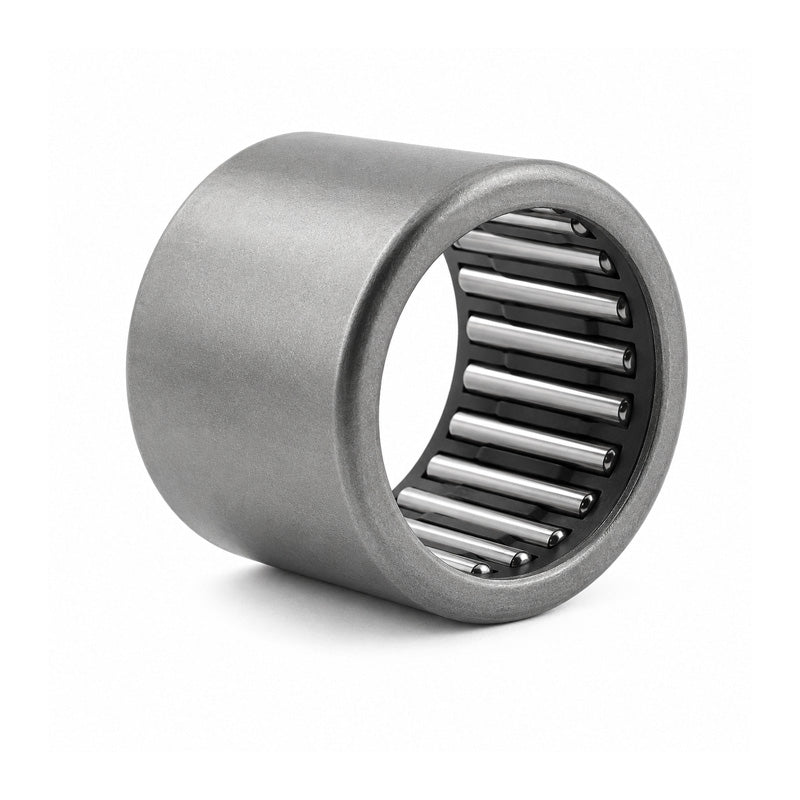

IKO TA5525Z Needle Roller Bearing Open End Type 55x67x25mm
- Regular price
- €19,95 ex VAT
- Sale price
- €19,95
- Regular price
-
In stock
Quantity Price Breaks
10
€17,76
19
€16,76
29
€16,56
39
€16,36
49
€16,16
74
€15,96
99
€14,96
199
€14,76
249
€14,56
499
€14,36
999
€13,97
SKU:
TA.5525.Z
IKO TA5525Z Needle Roller Bearing Open End Type 55x67x25mm
- Regular price
- €19,95 ex VAT
- Sale price
- €19,95
- Regular price
-
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Technical
| Fw | = | 55mm |
| D | = | 67mm |
| C | = | 25mm |
| Dynamic load | = | 51200 N |
| Static load | = | 97000 N |
| Inner race | = | IRT5025-1 |
| Weight | = | 230 g |
