SKU: TA.3825.Z-EU

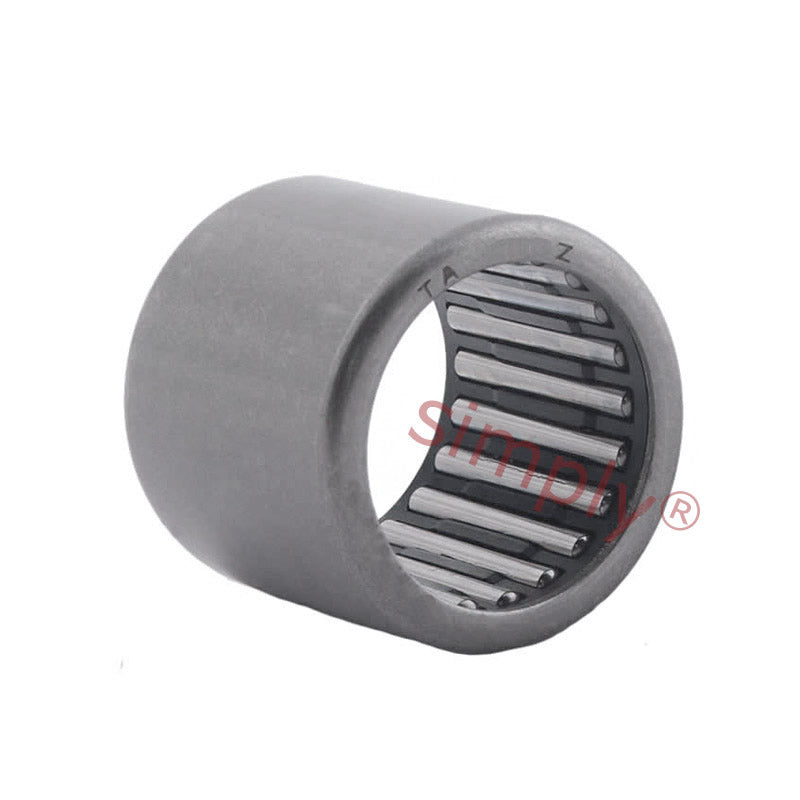

Premier Budget TA3825Z Needle Roller Bearing Open End Type 38x48x25mm
- Regular price
- €11,95 ex VAT
- Sale price
- €11,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€10,64
19
€10,04
29
€9,92
39
€9,80
49
€9,68
74
€9,56
99
€8,96
199
€8,84
249
€8,72
499
€8,60
999
€8,37
SKU:
TA.3825.Z-EU
Premier Budget TA3825Z Needle Roller Bearing Open End Type 38x48x25mm
- Regular price
- €11,95 ex VAT
- Sale price
- €11,95
- Regular price
-
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Technical
| Fw | = | 38mm |
| D | = | 48mm |
| C | = | 25mm |
| Dynamic load | = | 35600N |
| Static load | = | 63100N |
| Inner race | = | IRT3225-1 |
| Weight | = | 82.5g |
