SKU: TA.243216.Z

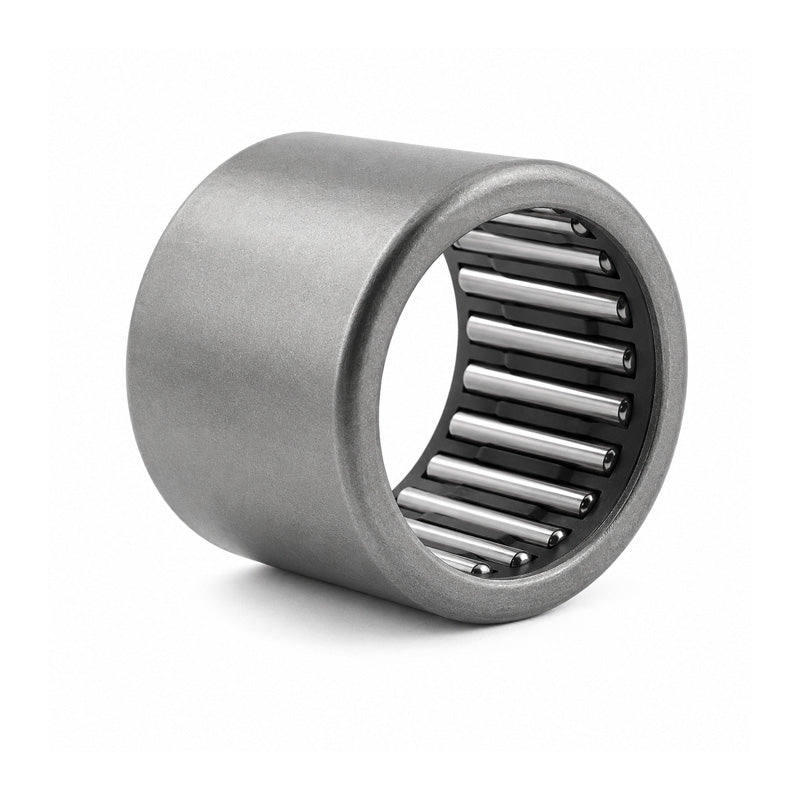

IKO TA243216Z Needle Roller Bearing Open End Type 24x32x16mm
- Regular price
- €15,95 ex VAT
- Sale price
- €15,95
- Regular price
-
In stock
Quantity Price Breaks
10
€14,20
19
€13,40
29
€13,24
39
€13,08
49
€12,92
74
€12,76
99
€11,96
199
€11,80
249
€11,64
499
€11,48
999
€11,17
SKU:
TA.243216.Z
IKO TA243216Z Needle Roller Bearing Open End Type 24x32x16mm
- Regular price
- €15,95 ex VAT
- Sale price
- €15,95
- Regular price
-
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Technical
| Fw | = | 24mm |
| D | = | 32mm |
| C | = | 16mm |
| Dynamic load | = | 14200 N |
| Static load | = | 20500 N |
| Inner race | = | IRT2016 |
| Weight | = | 28 g |
