SKU: TA.1813.Z

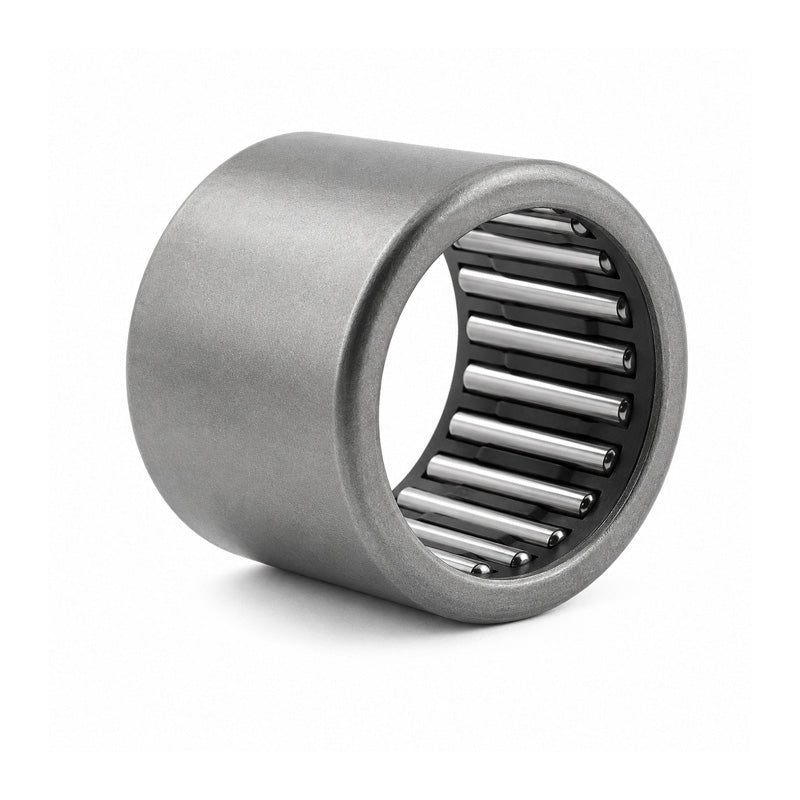

IKO TA1813Z Needle Roller Bearing Open End Type 18x25x13mm
- Regular price
- €18,95 ex VAT
- Sale price
- €18,95
- Regular price
-
In stock
Quantity Price Breaks
10
€16,87
19
€15,92
29
€15,73
39
€15,54
49
€15,35
74
€15,16
99
€14,21
199
€14,02
249
€13,83
499
€13,64
999
€13,27
SKU:
TA.1813.Z
IKO TA1813Z Needle Roller Bearing Open End Type 18x25x13mm
- Regular price
- €18,95 ex VAT
- Sale price
- €18,95
- Regular price
-
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Technical
| Fw | = | 18mm |
| D | = | 25mm |
| C | = | 13mm |
| Dynamic load | = | 9100 N |
| Static load | = | 12000 N |
| Inner race | = | IRT1513 |
| Weight | = | 16.4 g |
