SKU: TA.1616.Z

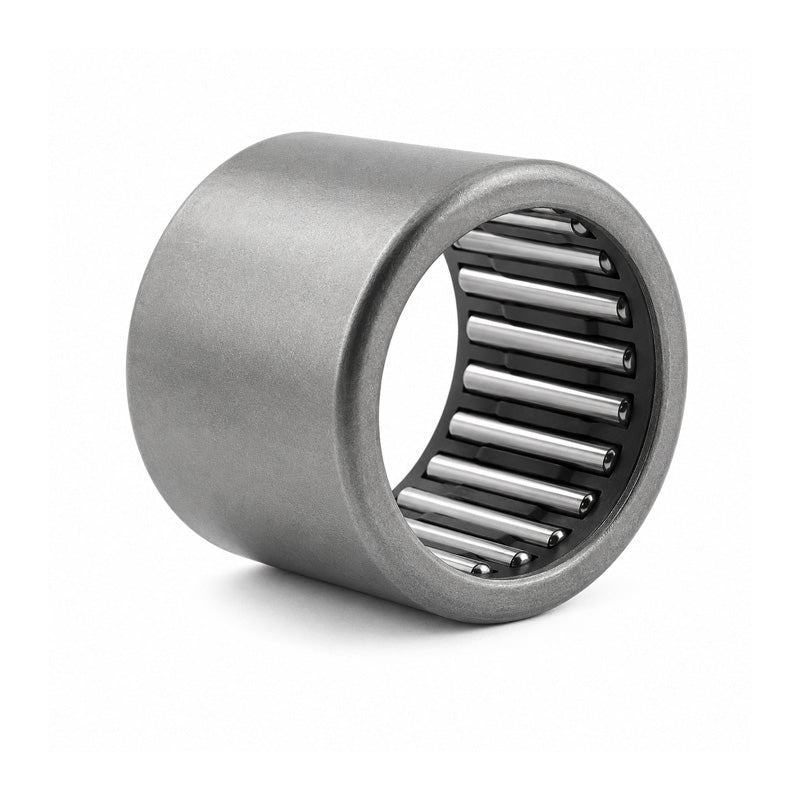

IKO TA1616Z Needle Roller Bearing Open End Type 16x24x16mm
- Regular price
- €7,95 ex VAT
- Sale price
- €7,95
- Regular price
-
In stock
Quantity Price Breaks
10
€7,08
19
€6,68
29
€6,60
39
€6,52
49
€6,44
74
€6,36
99
€5,96
199
€5,88
249
€5,80
499
€5,72
999
€5,57
SKU:
TA.1616.Z
IKO TA1616Z Needle Roller Bearing Open End Type 16x24x16mm
- Regular price
- €7,95 ex VAT
- Sale price
- €7,95
- Regular price
-
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Technical
| Fw | = | 16mm |
| D | = | 24mm |
| C | = | 16mm |
| Dynamic load | = | 11100 N |
| Static load | = | 13300 N |
| Inner race | = | IRT1216-1 |
| Weight | = | 20 g |
