SKU: SW68-M2400

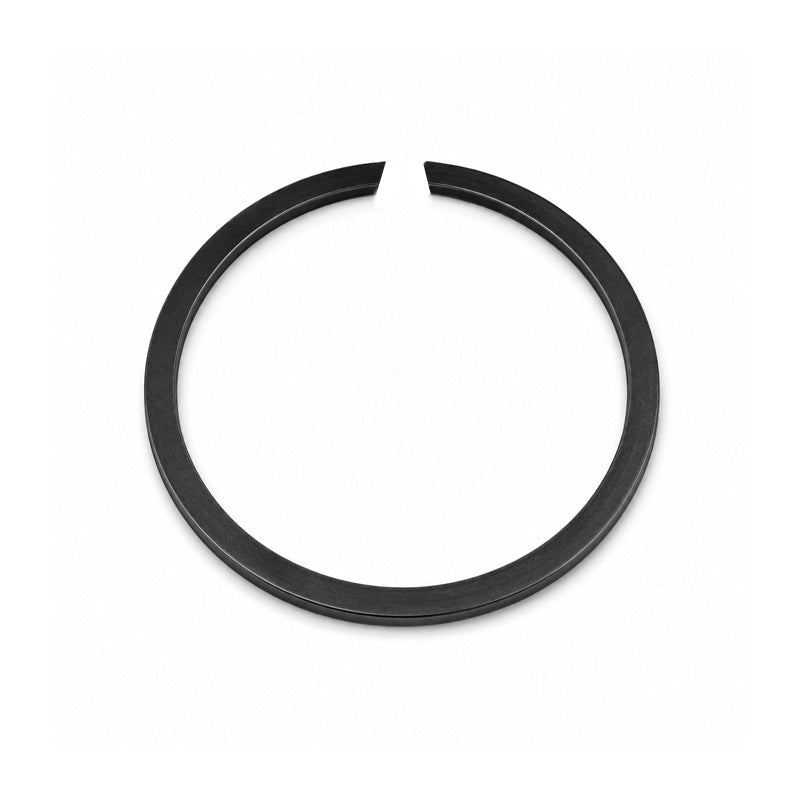

SW68 Snap Ring to Suit 68mm Shaft
- Regular price
- €1,95 ex VAT
- Sale price
- €1,95
- Regular price
-
In stock
Quantity Price Breaks
5+
€1,37
10+
€1,17
20+
€1,07
50+
€0,98
100+
€0,78
500+
€0,68
1000+
€0,59
SKU:
SW68-M2400
SW68 Snap Ring to Suit 68mm Shaft
- Regular price
- €1,95 ex VAT
- Sale price
- €1,95
- Regular price
-
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |

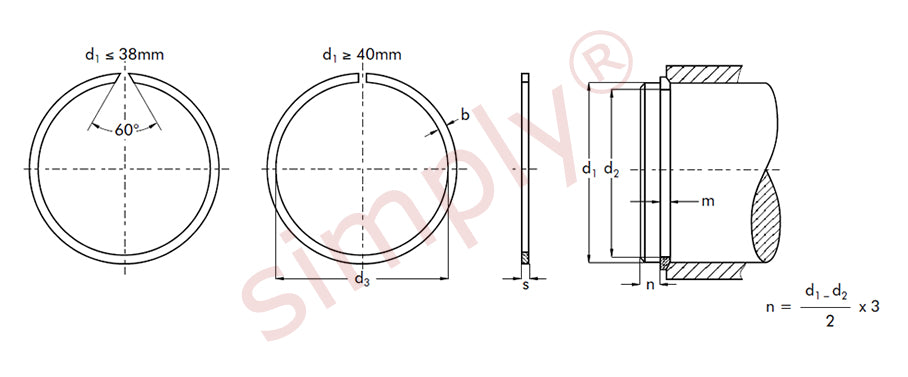

Technical
| d1 | = | 68mm |
| s | = | 2mm (Tolerance -0.1) |
| b | = | 2.8mm (Tolerance -0.1) |
| d3 max. | = | 65.4mm |
| d2 | = | 66.2mm (Tolerance - 0.19) |
| m min. | = | 2.2mm |
| FN | = | 31.7 kN |
| FR | = | 39.6 kN |
| n det x1000 | = | 3 rpm |
