SKU: SL11CAS-RHP

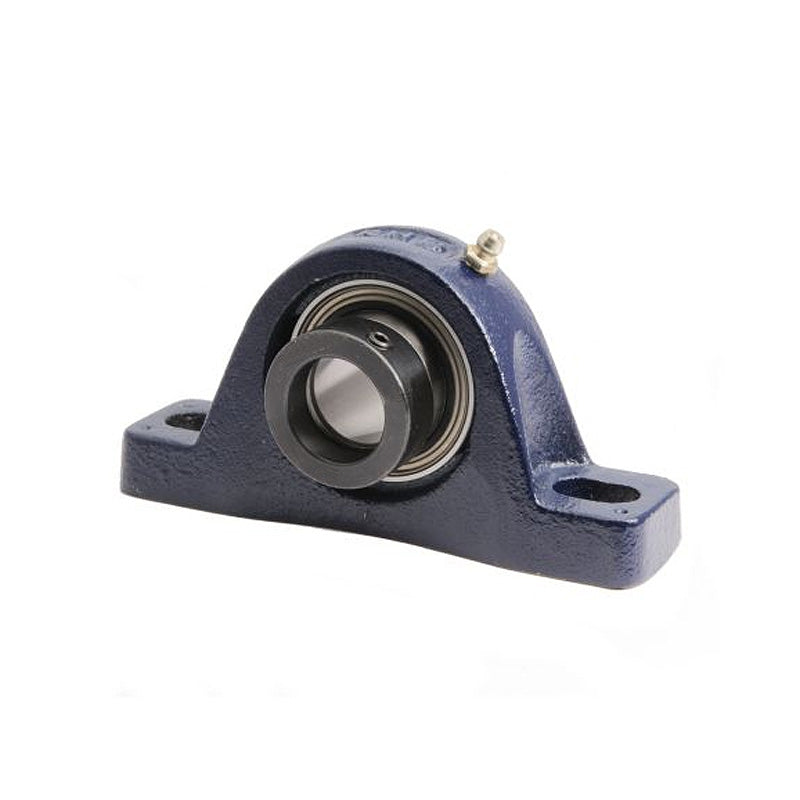

RHP SL11CAS Two Bolt Cast Iron Pillow Block with Setscrew Locking and 11mm Bore Grub Screw Full Width Insert
- Regular price
- €163,95 ex VAT
- Sale price
- €163,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€145,92
19+
€137,72
29+
€136,08
39+
€134,44
49+
€132,80
74+
€131,16
99+
€122,96
199+
€121,32
249+
€119,68
499+
€118,04
999+
€114,77
SKU:
SL11CAS-RHP
RHP SL11CAS Two Bolt Cast Iron Pillow Block with Setscrew Locking and 11mm Bore Grub Screw Full Width Insert
- Regular price
- €163,95 ex VAT
- Sale price
- €163,95
- Regular price
-
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical

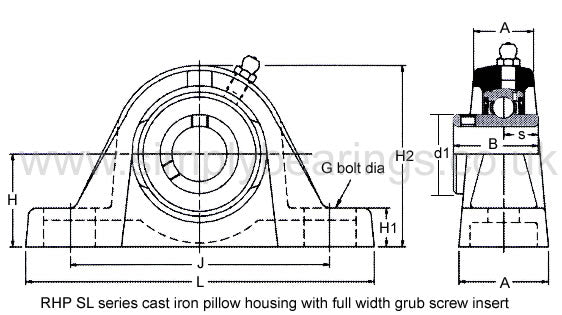

| Bore | = | 11mm |
| L | = | 119mm |
| H | = | 26.97mm |
| H1 | = | 11mm |
| H2 | = | 54mm |
| J max | = | 91.5mm |
| J min | = | 85.5mm |
| G | = | 10mm |
| A | = | 30mm |
| A1 | = | 20.5mm |
| B | = | 27.38mm |
| s | = | 11.55mm |
| s1 | = | 6.55mm |
| d1 | = | 24.21mm |
| Dynamic load Cr | = | 9550 N |
| Static load Cor | = | 4800 N |
| Rec max speed | = | 7000 rpm |
| Insert | = | 1017-11CAS |
| Casting group | = | 1 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
