SKU: SILKAC6M-CDX

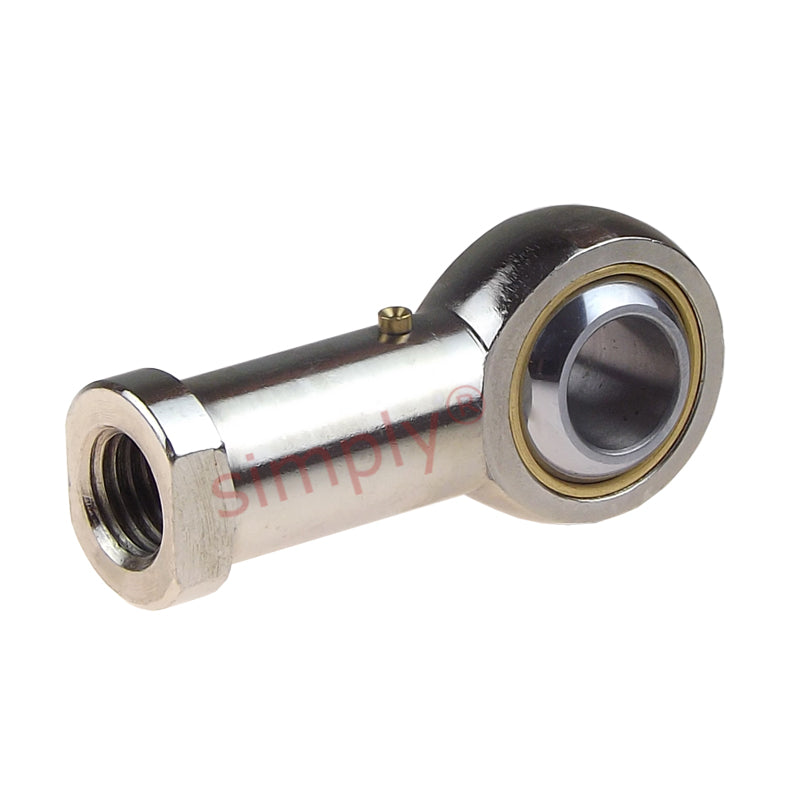

Codex SILKAC6M Left Hand Steel / Bronze Lined Plain Female Rod End M6 Thread
- Regular price
- €11,95 ex VAT
- Sale price
- €11,95
- Regular price
-
In stock
Quantity Price Breaks
10
€10,64
19
€10,04
29
€9,92
39
€9,80
49
€9,68
74
€9,56
99
€8,96
199
€8,84
249
€8,72
499
€8,60
999
€8,37
SKU:
SILKAC6M-CDX
Codex SILKAC6M Left Hand Steel / Bronze Lined Plain Female Rod End M6 Thread
- Regular price
- €11,95 ex VAT
- Sale price
- €11,95
- Regular price
-
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Technical
| d | = | 6mm |
| d2 max | = | 21mm |
| G | = | M6 |
| B | = | 9mm |
| C1 max | = | 6.75mm |
| h1 | = | 30mm |
| Max misalignment angle | = | 13 degrees |
| Dynamic load | = | 4.3 kN |
| Static load | = | 5.4 kN |
| dk | = | 12.7mm |
| d3 | = | 10mm |
| d4 max | = | 14mm |
| l3 min | = | 9mm |
| l4 max | = | 42mm |
| l5 | = | 5mm |
| l7 min | = | 10mm |
| r1 min | = | 0.3mm |
| w | = | 11mm |
| Weight | = | 0.025 kg |
