SKU: SAKB14F-SKF

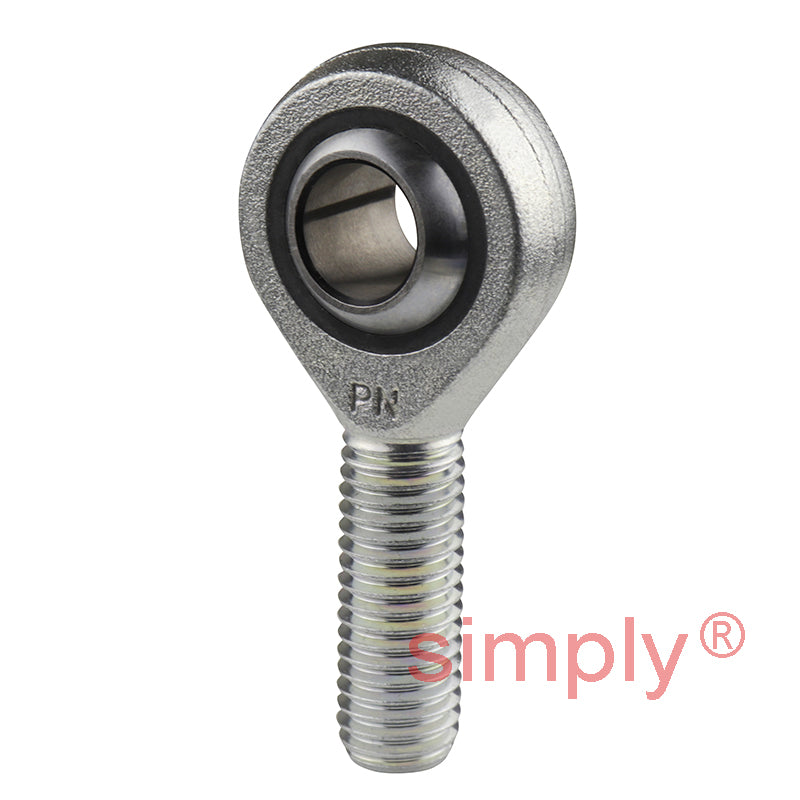

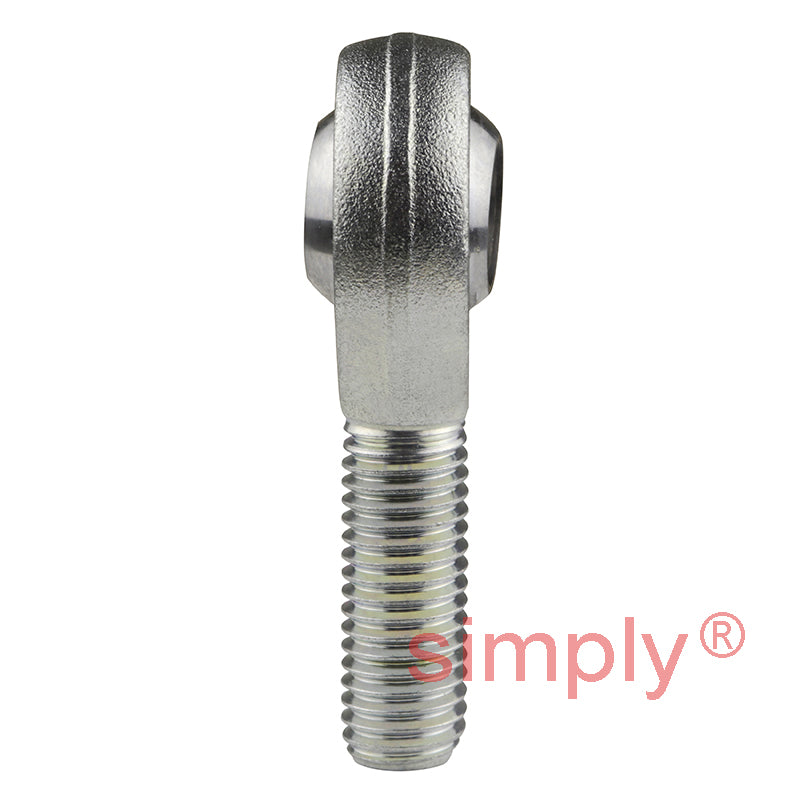

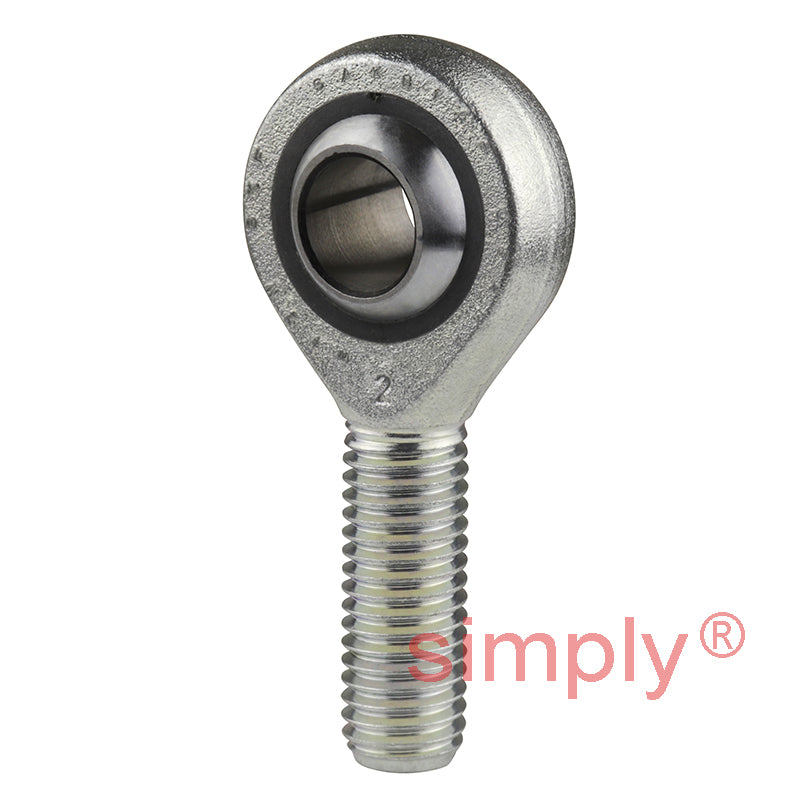

SKF SAKB14F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
- Regular price
- €78,95 ex VAT
- Sale price
- €78,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€70,27
19
€66,32
29
€65,53
39
€64,74
49
€63,95
74
€63,16
99
€59,21
199
€58,42
249
€57,63
499
€56,84
999
€55,27
SKU:
SAKB14F-SKF
SKF SAKB14F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
- Regular price
- €78,95 ex VAT
- Sale price
- €78,95
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
