SKU: SAKB12F-SKF

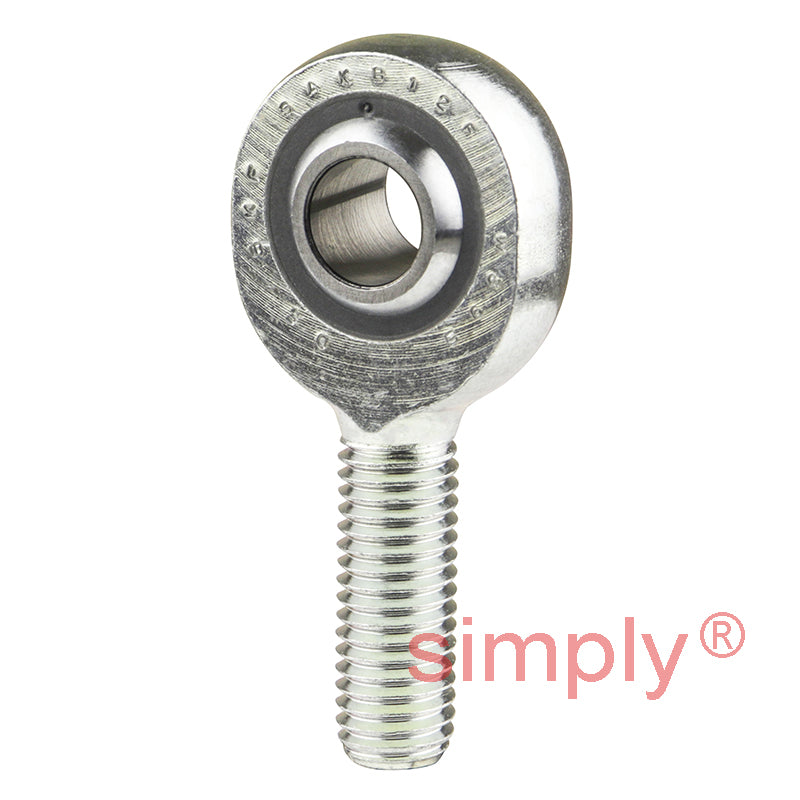

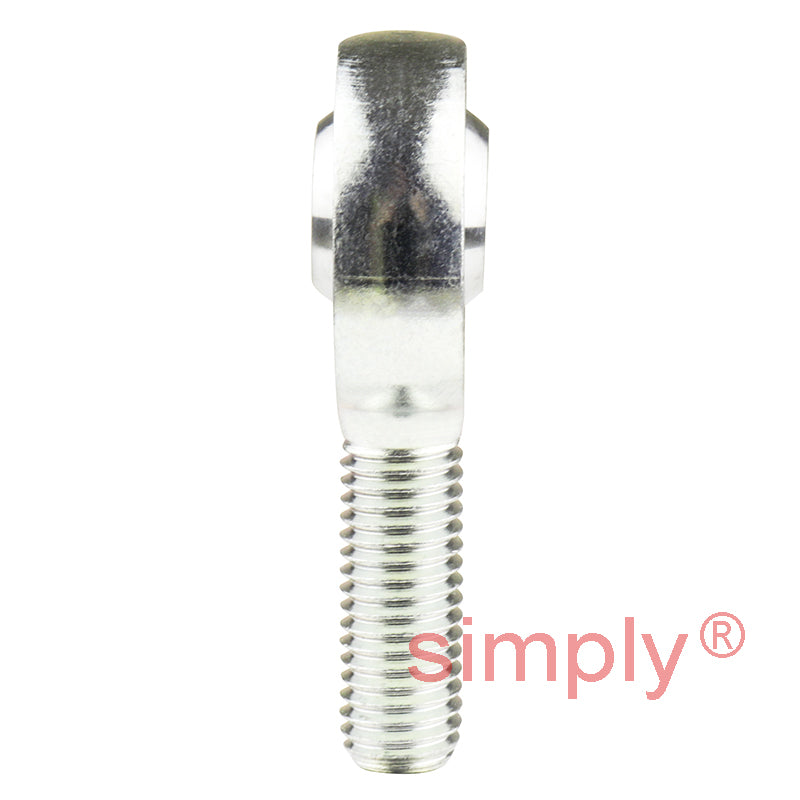

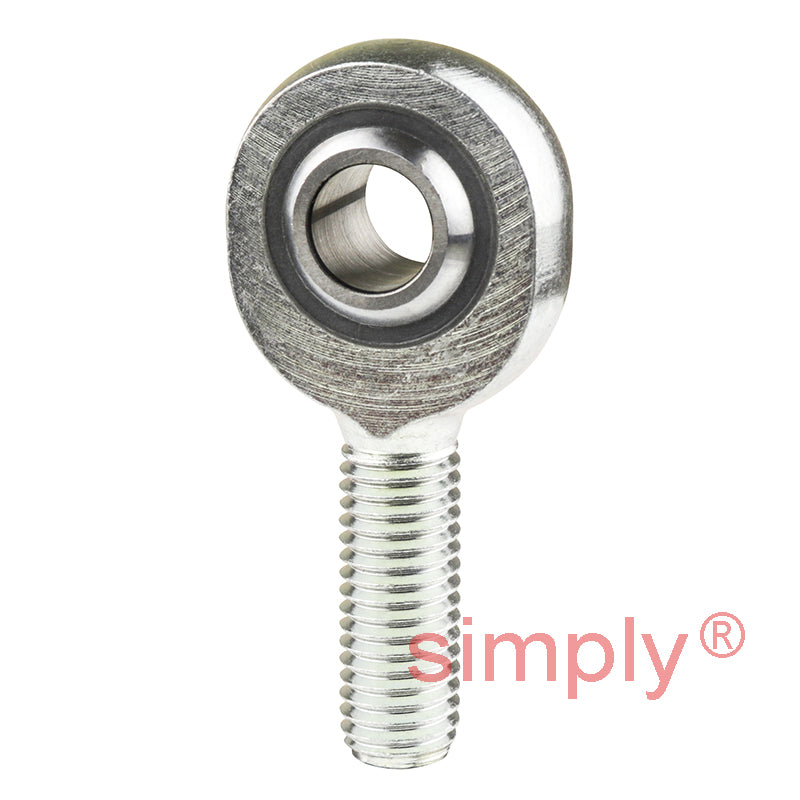

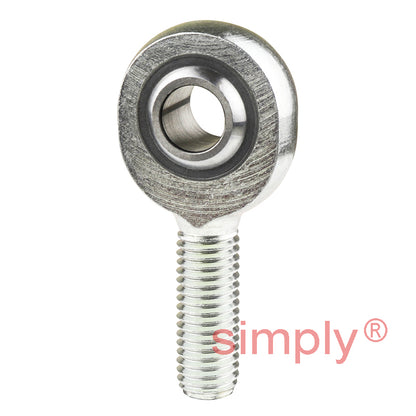

SKF SAKB12F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
- Regular price
- €46,95 ex VAT
- Sale price
- €46,95
- Regular price
-
In stock
Quantity Price Breaks
10
€41,79
19
€39,44
29
€38,97
39
€38,50
49
€38,03
74
€37,56
99
€35,21
199
€34,74
249
€34,27
499
€33,80
999
€32,87
SKU:
SAKB12F-SKF
SKF SAKB12F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M12 Thread
- Regular price
- €46,95 ex VAT
- Sale price
- €46,95
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
