SKU: SAKB10F-SKF

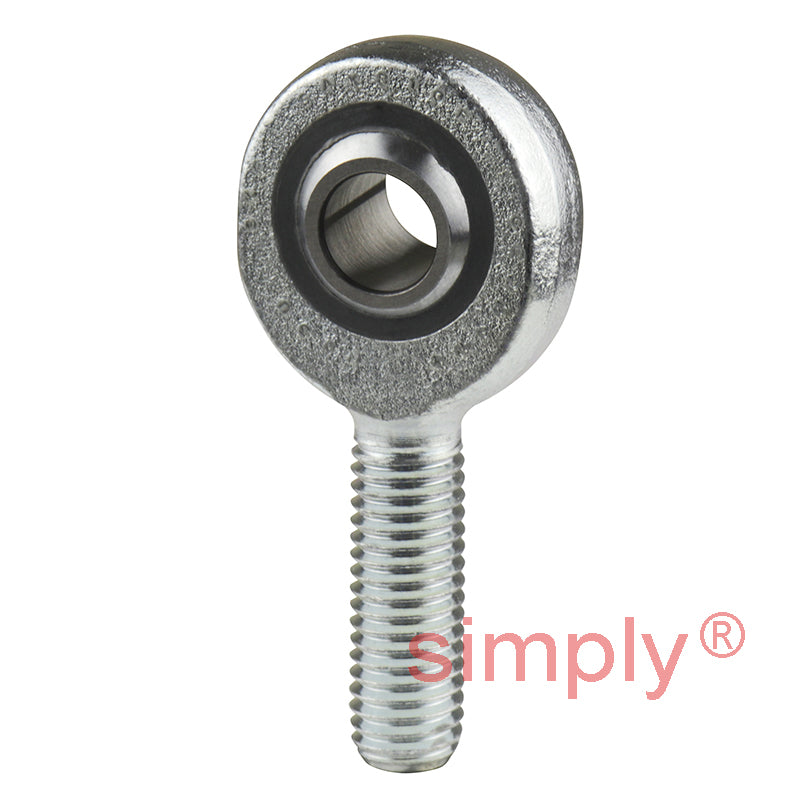

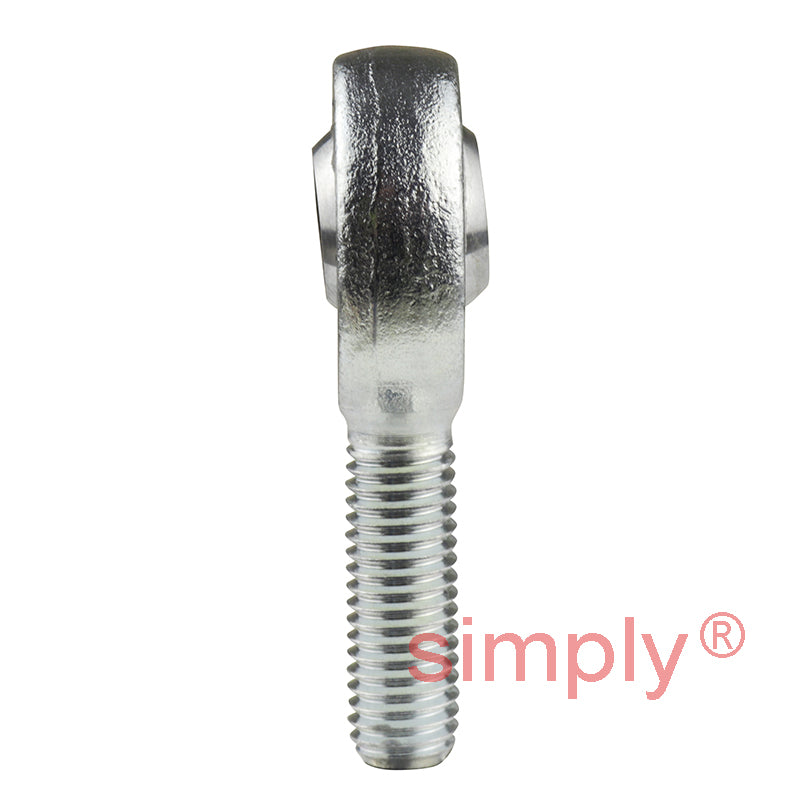

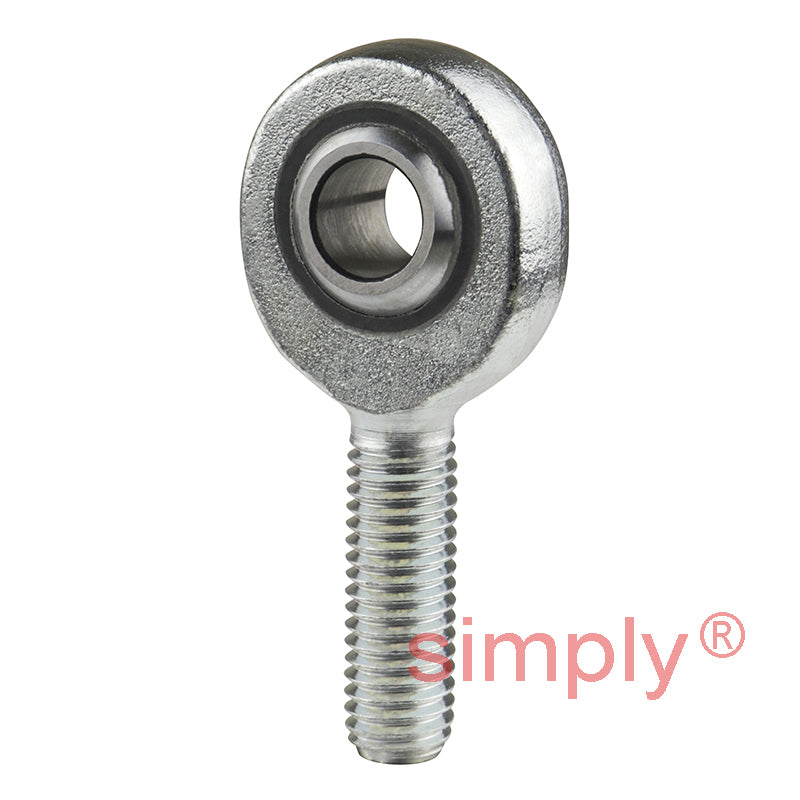

SKF SAKB10F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M10 Thread
- Regular price
- €30,95 ex VAT
- Sale price
- €30,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€27,55
19+
€26,00
29+
€25,69
39+
€25,38
49+
€25,07
74+
€24,76
99+
€23,21
199+
€22,90
249+
€22,59
499+
€22,28
999+
€21,67
SKU:
SAKB10F-SKF
SKF SAKB10F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M10 Thread
- Regular price
- €30,95 ex VAT
- Sale price
- €30,95
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
