SKU: RTUE65-214-XL-INA

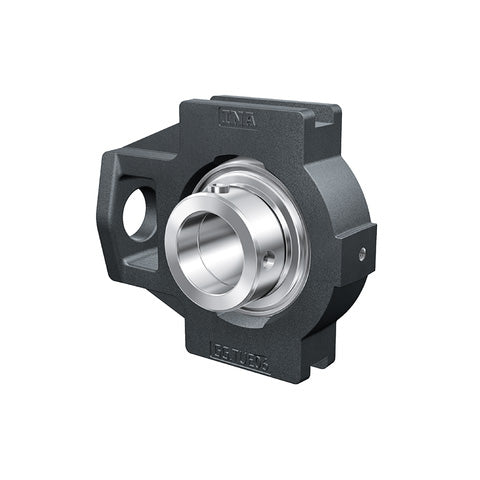

INA RTUE65214XL Cast Iron Take Up Unit with Eccentric Collar Insert 65mm Bore
- Regular price
- €296,95 ex VAT
- Sale price
- €296,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€264,29
19+
€249,44
29+
€246,47
39+
€243,50
49+
€240,53
74+
€237,56
99+
€222,71
199+
€219,74
249+
€216,77
499+
€213,80
999+
€207,87
SKU:
RTUE65-214-XL-INA
INA RTUE65214XL Cast Iron Take Up Unit with Eccentric Collar Insert 65mm Bore
- Regular price
- €296,95 ex VAT
- Sale price
- €296,95
- Regular price
-
Description
|
INA Take-Up Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. These cast iron take-up units are used where shafts must undergo substantial displacement. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
