SKU: RNAO25x35x26-EU

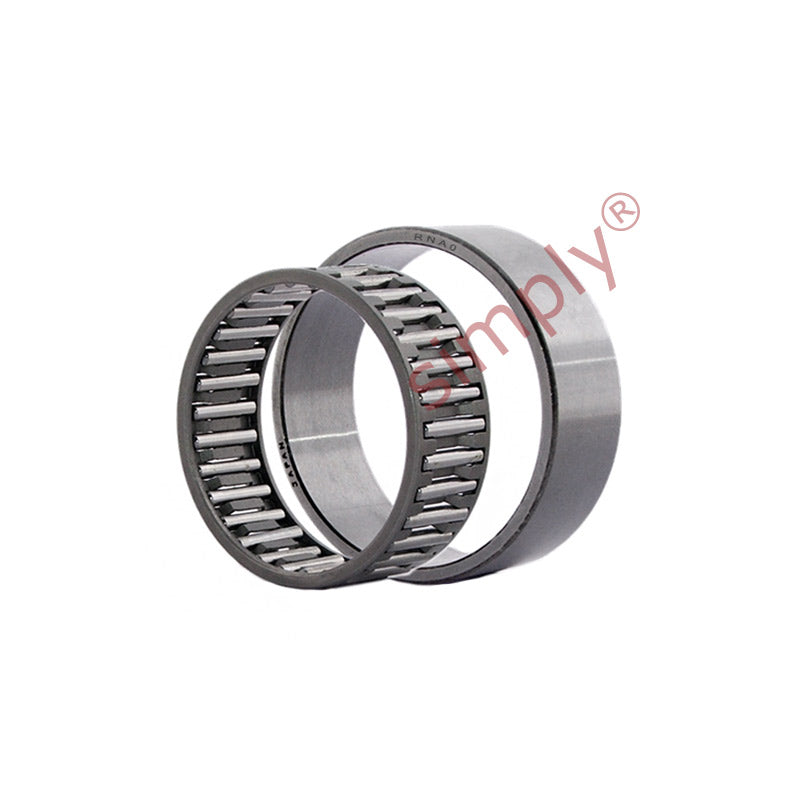

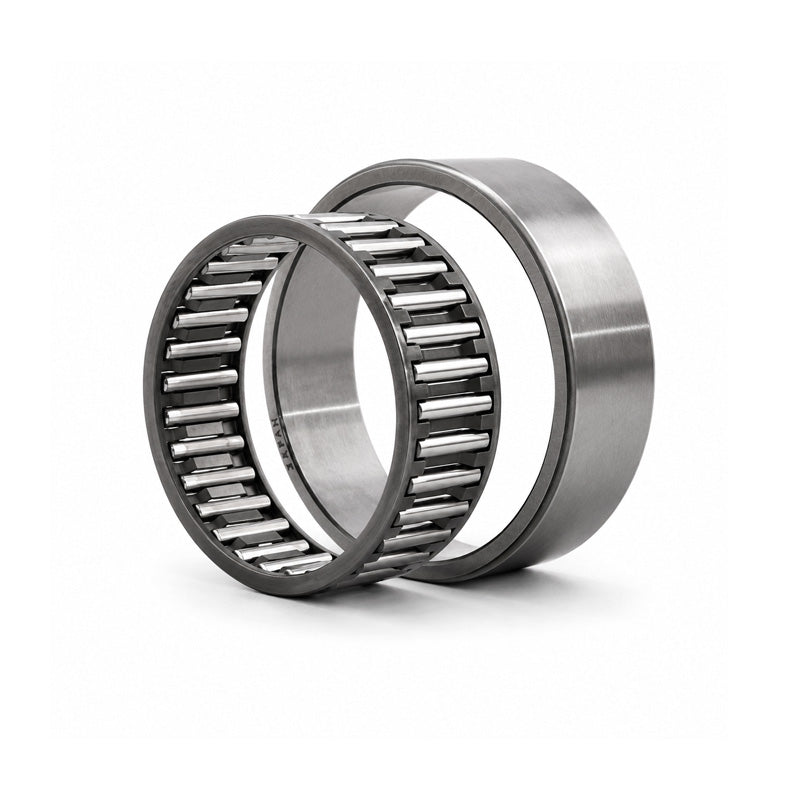

RNAO25x35x26 Double Row Budget Needle Roller Bearing no Flanges or Shaft Sleeve
- Regular price
- €27,95 ex VAT
- Sale price
- €27,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€24,88
19
€23,48
29
€23,20
39
€22,92
49
€22,64
74
€22,36
99
€20,96
199
€20,68
249
€20,40
499
€20,12
999
€19,57
SKU:
RNAO25x35x26-EU
RNAO25x35x26 Double Row Budget Needle Roller Bearing no Flanges or Shaft Sleeve
- Regular price
- €27,95 ex VAT
- Sale price
- €27,95
- Regular price
-
Description
|
Budget Needle Roller Bearing without Flanges and without Inner ring: Supplied without inner rings the caged needle and outer shell are separable items enabling either mounting together or individually. The cages can be shaft mounted for assembly into an already pre-installed outer ring component. Benefits: Supplied without inner ring, separable - ease of mounting, can be used with a wide range of available inner rings |
Technical
| Fw | = | 25mm |
| D | = | 35mm |
| C | = | 26mm |
| Dynamic load C | = | 18700 N |
| Static load Co | = | 37500 N |
| Fatigue load limit Pu | = | 4300 N |
| Speed in grease | = | 10000 rpm |
| Speed in oil | = | 16000 rpm |
| E | = | 30mm |
| r1r2 min | = | 0.3mm |
| da | = | 29.4mm |
| Da | = | 30.5mm |
| Db | = | 25.6mm |
| ra max | = | 0.3mm |
| Weight | = | 76 g |
