SKU: RNAO10x17x10TN-MB

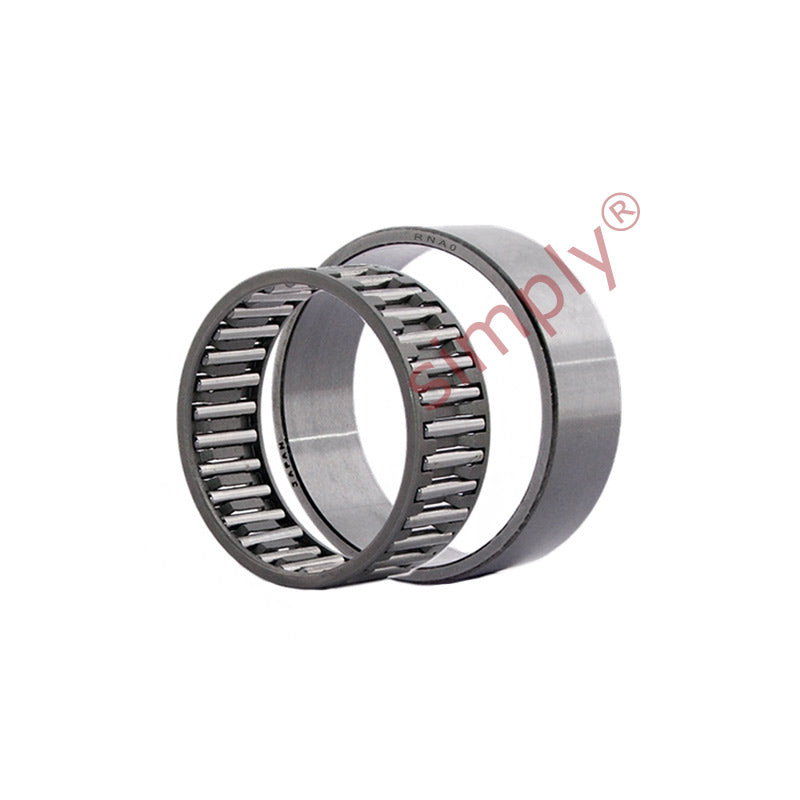

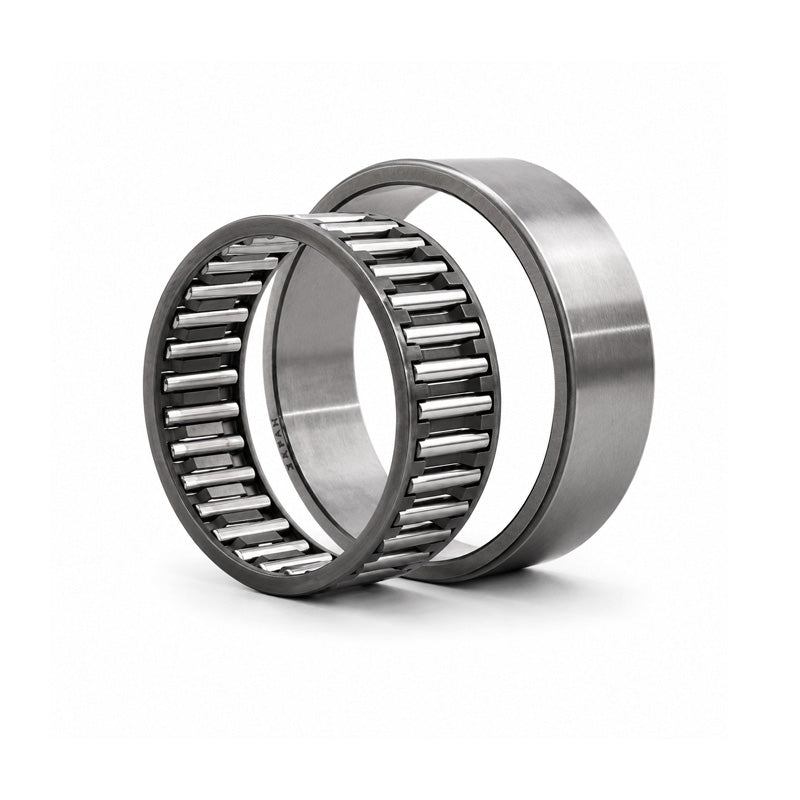

Major Brand RNAO10x17x10TN Needle Roller Bearings with Machined Rings without an Inner Ring
- Regular price
- €10,95 ex VAT
- Sale price
- €10,95
- Regular price
-
In stock
Quantity Price Breaks
10
€9,75
19
€9,20
29
€9,09
39
€8,98
49
€8,87
74
€8,76
99
€8,21
199
€8,10
249
€7,99
499
€7,88
999
€7,67
SKU:
RNAO10x17x10TN-MB
Major Brand RNAO10x17x10TN Needle Roller Bearings with Machined Rings without an Inner Ring
- Regular price
- €10,95 ex VAT
- Sale price
- €10,95
- Regular price
-
Description
|
Needle Roller Bearing without Flanges and without Inner ring: Supplied without inner rings the caged needle and outer shell are separable items enabling either mounting together or individually. The cages can be shaft mounted for assembly into an already pre-installed outer ring component. Benefits: Supplied without inner ring, separable - ease of mounting, can be used with a wide range of available inner rings |
Technical
| Fw | = | 10mm |
| D | = | 17mm |
| C | = | 10mm |
| Dynamic load | = | 4570 N |
| Static load | = | 5700 N |
| Fatigue load limit Pu | = | 630 N |
| Speed in grease | = | 19000 rpm |
| Speed in oil | = | 30000 rpm |
| E | = | 13mm |
| r1r2 min | = | 0.3mm |
| da | = | 12.7mm |
| Da | = | 13.3mm |
| Db | = | 10.3mm |
| ra max | = | 0.3mm |
| Weight | = | 10 g |
