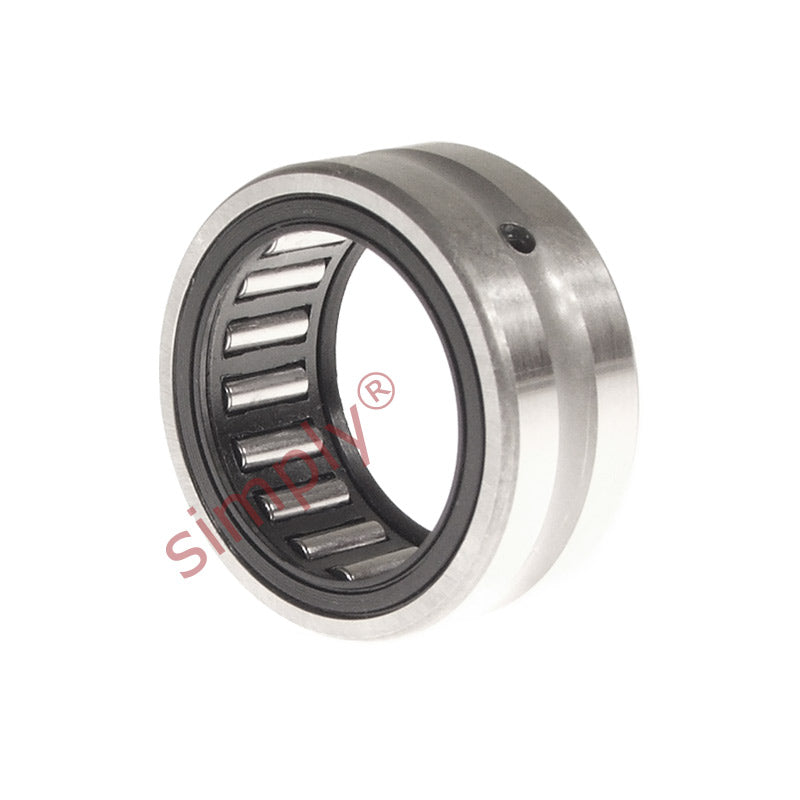

Major Brand RNA4916 Needle Roller Bearing With Flanges without Shaft Sleeve 90x110x30mm

SKU: RNA4916-MB

Major Brand RNA4916 Needle Roller Bearing With Flanges without Shaft Sleeve 90x110x30mm

€153,95 ex VAT
€153,95
ex VAT
Not in stock

Quantity Price Breaks

10 €137,02
19 €129,32
29 €127,78
39 €126,24
49 €124,70
74 €123,16
99 €115,46
199 €113,92
249 €112,38
499 €110,84
999 €107,77
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RNA4916 Needle Roller Bearing With Flanges without Shaft Sleeve 90x110x30mm
SKU: RNA4916-MB

Major Brand RNA4916 Needle Roller Bearing With Flanges without Shaft Sleeve 90x110x30mm

€153,95 ex VAT
€153,95
ex VAT

Description

Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies.
Benefits: Economical solution, non separable, can be used with a wide range of inner rings

Technical

Fw = 90mm
D = 110mm
C = 30mm
Dynamic load = 88000 N
Static load = 183000 N
Fatigue load limit Pu = 24000 N
Speed in grease = 3200 rpm
Speed in oil = 4500 rpm
r1r2 = 1mm
Da max = 105mm
ra max = 1mm
Seal = CR90x110x12CRW1R
Weight = 520 g
