SKU: RCJY30-XL-N-INA

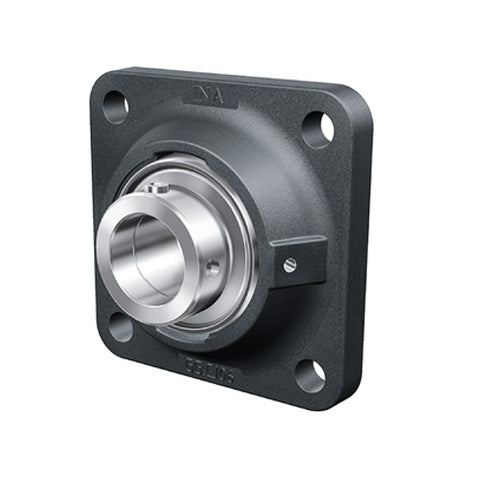

INA RCJY30XLN Four Bolt Cast Iron Square Housing with Grub Screw Insert 30mm Bore
- Regular price
- €47,95 ex VAT
- Sale price
- €47,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€42,68
19+
€40,28
29+
€39,80
39+
€39,32
49+
€38,84
74+
€38,36
99+
€35,96
199+
€35,48
249+
€35,00
499+
€34,52
999+
€33,57
SKU:
RCJY30-XL-N-INA
INA RCJY30XLN Four Bolt Cast Iron Square Housing with Grub Screw Insert 30mm Bore
- Regular price
- €47,95 ex VAT
- Sale price
- €47,95
- Regular price
-
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
