Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days

SKU: RAXZ540-MB

Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days

€535,95 ex VAT
€535,95
ex VAT
Not in stock

Quantity Price Breaks

10 €477,00
19 €450,20
29 €444,84
39 €439,48
49 €434,12
74 €428,76
99 €401,96
199 €396,60
249 €391,24
499 €385,88
999 €375,17
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
SKU: RAXZ540-MB

Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days

€535,95 ex VAT
€535,95
ex VAT

Description

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

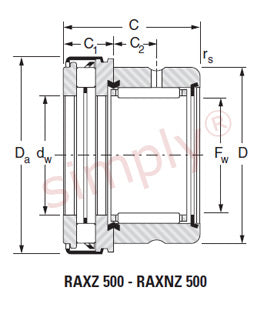

Technical

Fw = 40mm
D = 52mm
C = 31mm
da = 40mm
Da = 61mm
C1 = 13mm
C2 = 9mm
rs min = 0.85mm
Radial dynamic load = 23.8 kN
Radial static load = 47 kN
Axial dynamic load = 46 kN
Axial static load = 129 kN
Speed rating = 5 rpm
Weight = 0.218 kg
