SKU: QJ.210.MPA.MB

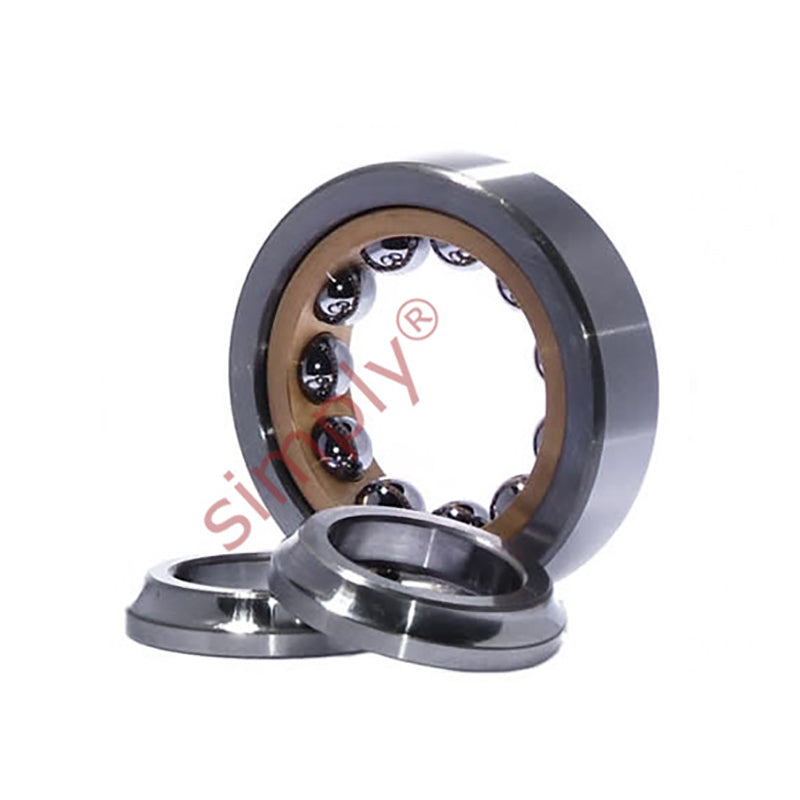

QJ210MPA Four Point Contact Ball Bearing 50x90x20mm
- Regular price
- €112,95 ex VAT
- Sale price
- €112,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€100,53
19
€94,88
29
€93,75
39
€92,62
49
€91,49
74
€90,36
99
€84,71
199
€83,58
249
€82,45
499
€81,32
999
€79,07
SKU:
QJ.210.MPA.MB
QJ210MPA Four Point Contact Ball Bearing 50x90x20mm
- Regular price
- €112,95 ex VAT
- Sale price
- €112,95
- Regular price
-
Description
Four Point Contact Ball Bearings: Are radial single row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double row ball bearing of equivalent bore size
Benefits: Supports axial loads in both directions, ease of mounting.
Benefits: Supports axial loads in both directions, ease of mounting.
Technical
| d | = | 50mm |
| D | = | 90mm |
| B | = | 20mm |
| r1r2 min | = | 1.1 |
| a | = | 49 |
| Dynamic load | = | 67 kN |
| Static load | = | 60 kN |
| Cu | = | 2.7 kN |
| Reference speed | = | 6600 rpm |
| Limiting speed | = | 13000 rpm |
| Weight | = | 0.58kg |
