SKU: PNA22/44-EU
PNA22/44 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 22x44x20
- Regular price
- €54,95 ex VAT
- Sale price
- €54,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€48,91
19
€46,16
29
€45,61
39
€45,06
49
€44,51
74
€43,96
99
€41,21
199
€40,66
249
€40,11
499
€39,56
999
€38,47
SKU:
PNA22/44-EU

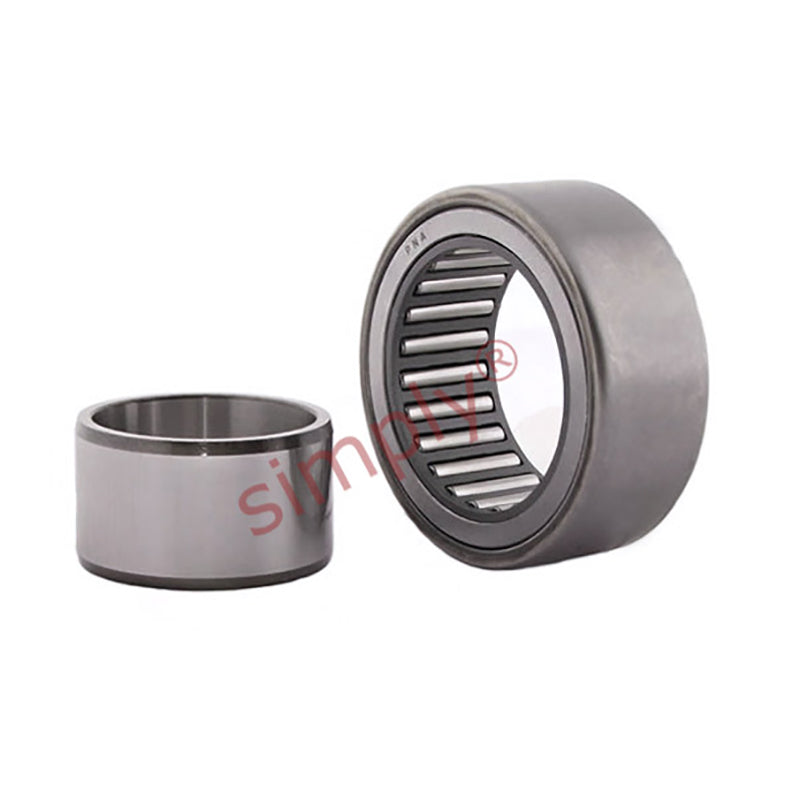

PNA22/44 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 22x44x20
- Regular price
- €54,95 ex VAT
- Sale price
- €54,95
- Regular price
-
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |

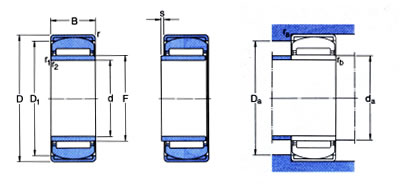

Technical
| d | = | 22mm |
| D | = | 44mm |
| B | = | 20mm |
| Dynamic load C | = | 22000 N |
| Static load Co | = | 36500 N |
| Fatigue load limit Pu | = | 4550 N |
| Speed in grease | = | 9000 rpm |
| Speed in oil | = | 14000 rpm |
| F | = | 28mm |
| D1 | = | 38.5mm |
| r min | = | 1mm |
| r1r2 min | = | 0.3mm |
| s (axial disp) | = | 0.5mm |
| da min | = | 24mm |
| Da min | = | 37.5mm |
| Da max | = | 39mm |
| ra max | = | 1mm |
| rb max | = | 0.3mm |
| Weight | = | 150 g |
