SKU: PBS-DS-08B-18

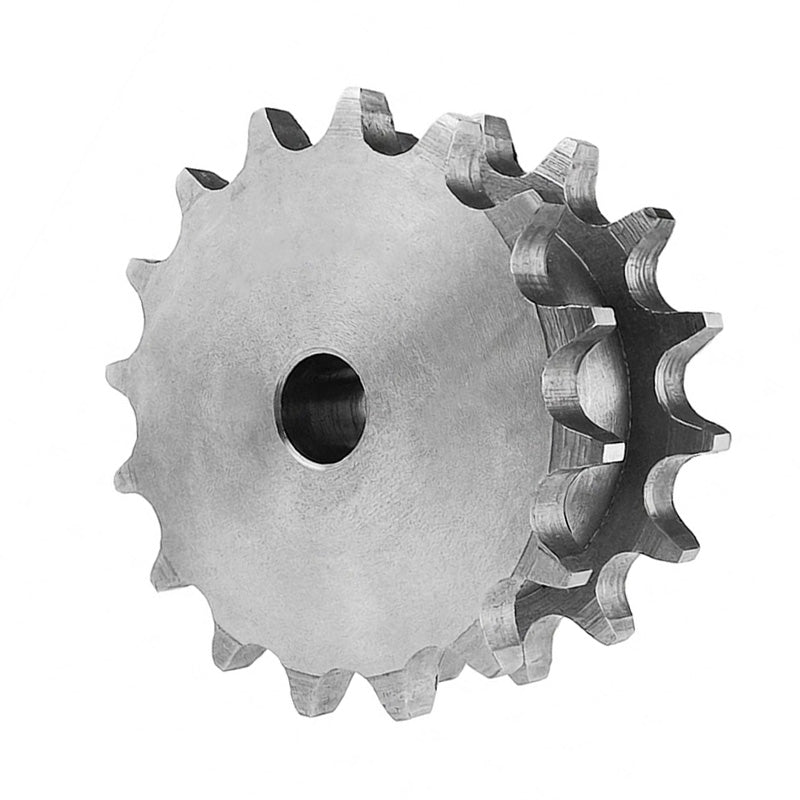

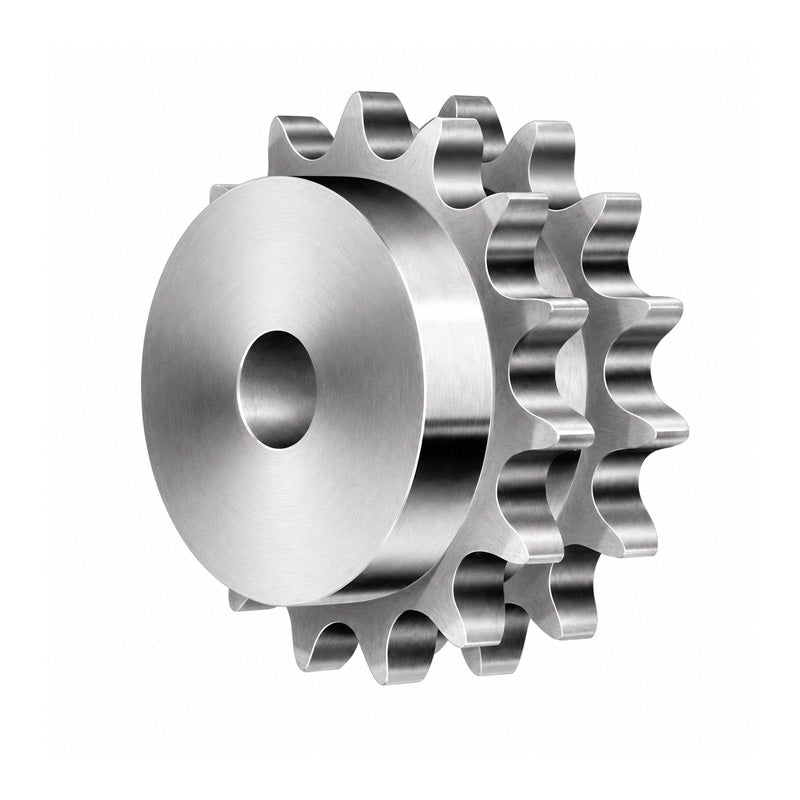

18 Tooth 08B Pilot Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
- Regular price
- €19,95 ex VAT
- Sale price
- €19,95
- Regular price
-
In stock
Quantity Price Breaks
5
€17,76
9
€16,76
19
€16,56
29
€16,36
49
€16,16
74
€15,96
99
€14,96
199
€14,76
249
€14,56
499
€14,36
999
€13,97
SKU:
PBS-DS-08B-18
18 Tooth 08B Pilot Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
- Regular price
- €19,95 ex VAT
- Sale price
- €19,95
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

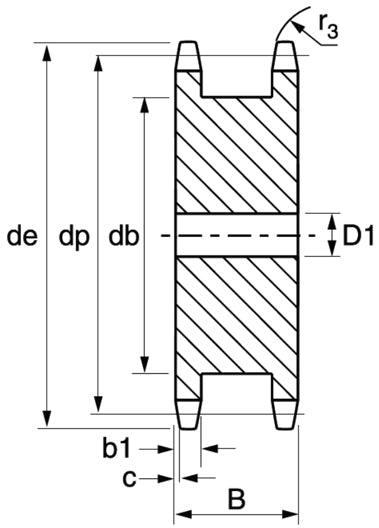

Technical
| No. of Teeth | = | 18 |
| Pitch Diameter dp | = | 73.14mm |
| Outer Diameter de | = | 77.8mm |
| Hub Diameter N | = | 58mm |
| Width B | = | 31mm |
| Chamfer C | = | 1.3mm |
| Tooth Radius r3 | = | 13mm |
| Tooth Width b1 | = | 7.2mm |
| Stock Bore D1 | = | 12mm |
| Weight | = | 0.525 kg |
