SKU: NU1048MA-EU

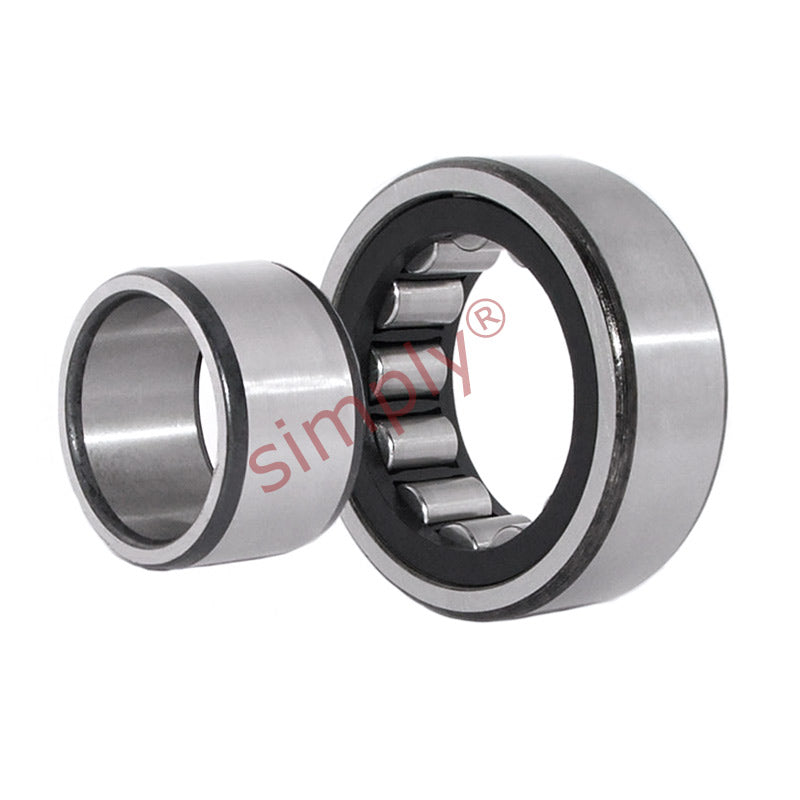

NU1048 Budget Single Row Cylindrical Roller Bearing 240x360x56mm
- Regular price
- €1.833,95 ex VAT
- Sale price
- €1.833,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€1.632,22
19
€1.540,52
29
€1.522,18
39
€1.503,84
49
€1.485,50
74
€1.467,16
99
€1.375,46
199
€1.357,12
249
€1.338,78
499
€1.320,44
999
€1.283,77
SKU:
NU1048MA-EU
NU1048 Budget Single Row Cylindrical Roller Bearing 240x360x56mm
- Regular price
- €1.833,95 ex VAT
- Sale price
- €1.833,95
- Regular price
-
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
Technical
| d | = | 240mm |
| D | = | 360mm |
| B | = | 56mm |
| Dynamic load C | = | 523 kN |
| Static load Co | = | 800 kN |
| Fatigue load limit Pu | = | 78 kN |
| Reference speed | = | 2000 rpm |
| Limiting speed | = | 2600 rpm |
| Weight | = | 20 kg |
| d1 | = | 282mm |
| D1 | = | 317mm |
| F, E | = | 270mm |
| r1r2 min | = | 3mm |
| r3r4 min | = | 3mm |
| s | = | 7.5mm |
| da min | = | 253mm |
| da max | = | 266mm |
| db min | = | 274mm |
| Da max | = | 347mm |
| ra max | = | 2.5mm |
| rb max | = | 2.5mm |
| kr | = | 0.1 |
| Angle ring | = | HJ1048 |
| Angle ring weight | = | 2.25kg |
| B1 | = | 14mm |
| B2 | = | 27mm |
