SKU: NJ321ECJ-EU

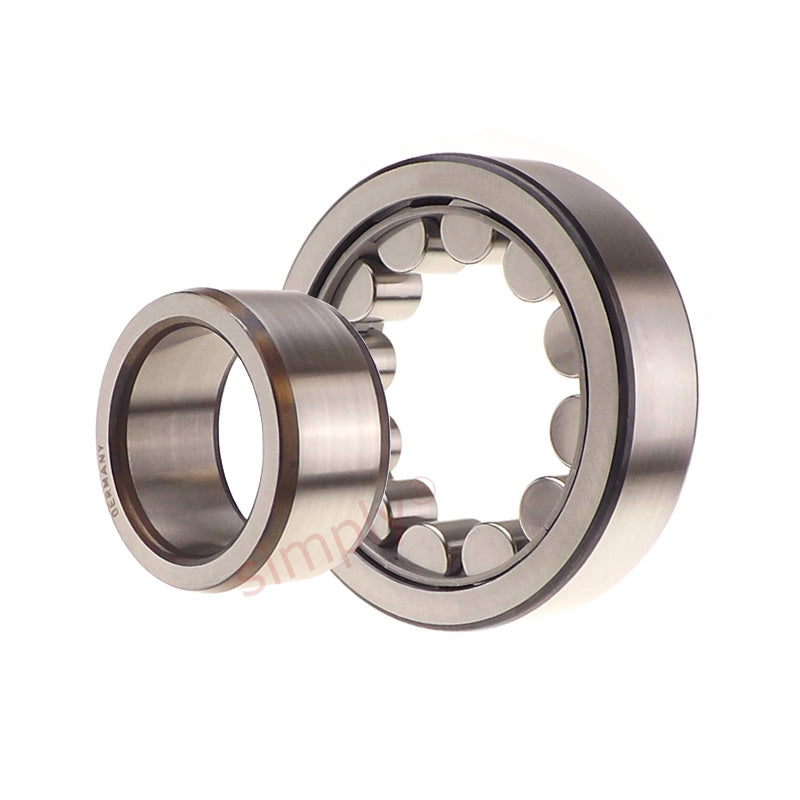

NJ321 Budget Single Row Cylindrical Roller Bearing 105x225x49mm
- Regular price
- €422,95 ex VAT
- Sale price
- €422,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€376,43
19
€355,28
29
€351,05
39
€346,82
49
€342,59
74
€338,36
99
€317,21
199
€312,98
249
€308,75
499
€304,52
999
€296,07
SKU:
NJ321ECJ-EU
NJ321 Budget Single Row Cylindrical Roller Bearing 105x225x49mm
- Regular price
- €422,95 ex VAT
- Sale price
- €422,95
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 105mm |
| D | = | 225mm |
| B | = | 49mm |
| Dynamic load C | = | 500 kN |
| Static load Co | = | 500 kN |
| Fatigue load limit Pu | = | 57 kN |
| Reference speed | = | 3200 rpm |
| Limiting speed | = | 3800 rpm |
| Weight | = | 8.75 kg |
| Cage options | = | ML |
| d1 | = | 145mm |
| D1 | = | 190mm |
| F, E | = | 133mm |
| r1r2 min | = | 3mm |
| r3r4 min | = | 3mm |
| s | = | 3.4mm |
| da min | = | 119mm |
| da max | = | 130mm |
| db min | = | 148mm |
| Da max | = | 211mm |
| ra max | = | 2.5mm |
| rb max | = | 2.5mm |
| kr | = | 0.15 |
