SKU: NJ2219-EU

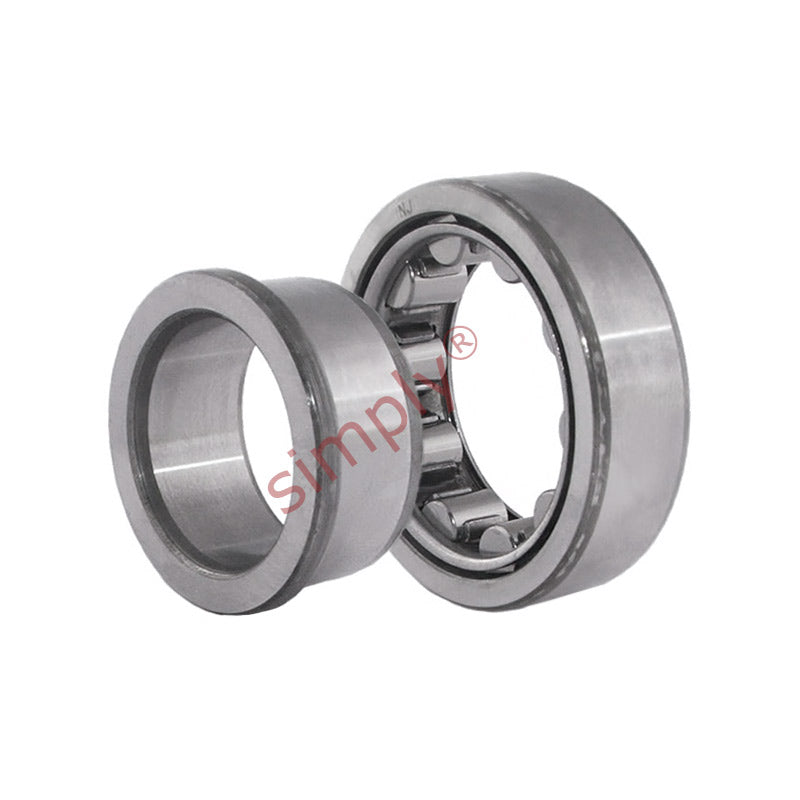

NJ2219 Budget Single Row Cylindrical Roller Bearing 95x170x43mm
- Regular price
- €206,95 ex VAT
- Sale price
- €206,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€184,19
19
€173,84
29
€171,77
39
€169,70
49
€167,63
74
€165,56
99
€155,21
199
€153,14
249
€151,07
499
€149,00
999
€144,87
SKU:
NJ2219-EU
NJ2219 Budget Single Row Cylindrical Roller Bearing 95x170x43mm
- Regular price
- €206,95 ex VAT
- Sale price
- €206,95
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 95mm |
| D | = | 170mm |
| B | = | 43mm |
| Dynamic load C | = | 325 kN |
| Static load Co | = | 375 kN |
| Fatigue load limit Pu | = | 45.5 kN |
| Reference speed | = | 4300 rpm |
| Limiting speed | = | 4800 rpm |
| Weight | = | 3.95 kg |
| Cage options | = | J.M |
| d1 | = | 120mm |
| D1 | = | 149mm |
| F, E | = | 112.5mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 2.1mm |
| s | = | 3mm |
| da min | = | 107mm |
| da max | = | 110mm |
| db min | = | 123mm |
| Da max | = | 158mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.2 |
