SKU: NA6909-EU

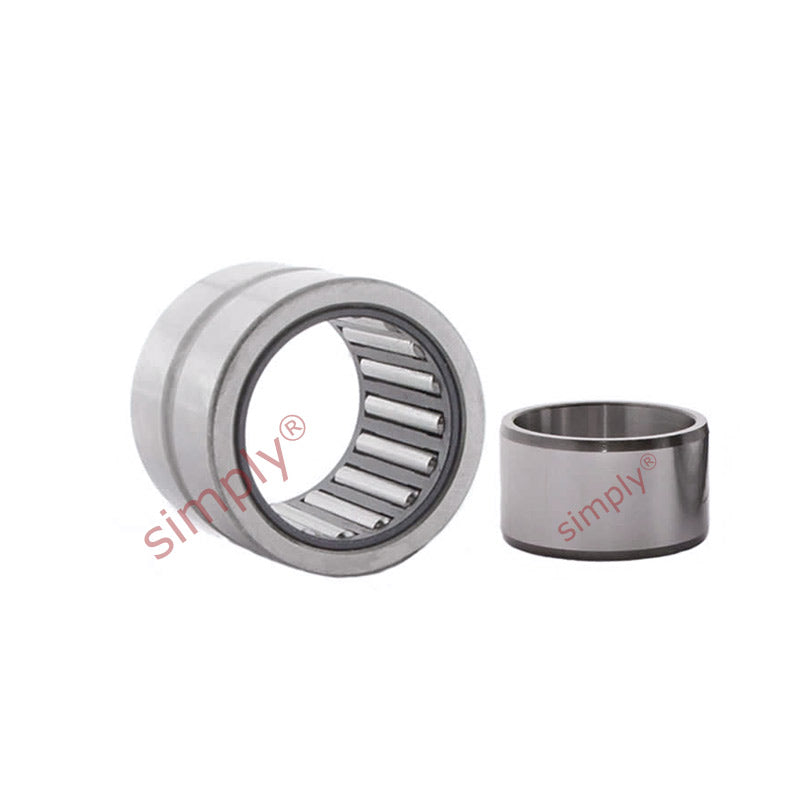

NA6909 Budget Needle Roller Bearing / Shaft Sleeve 45x68x40mm
- Regular price
- €74,95 ex VAT
- Sale price
- €74,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€66,71
19
€62,96
29
€62,21
39
€61,46
49
€60,71
74
€59,96
99
€56,21
199
€55,46
249
€54,71
499
€53,96
999
€52,47
SKU:
NA6909-EU
NA6909 Budget Needle Roller Bearing / Shaft Sleeve 45x68x40mm
- Regular price
- €74,95 ex VAT
- Sale price
- €74,95
- Regular price
-
Description
|
Budget Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
Technical
| d | = | 45mm |
| D | = | 68mm |
| B | = | 40mm |
| Dynamic load C | = | 70400 N |
| Static load Co | = | 137000 N |
| Fatigue load limit Pu | = | 17300 N |
| Speed in grease | = | 5300 rpm |
| Speed in oil | = | 7500 rpm |
| F | = | 52mm |
| r1r2 | = | 0.6mm |
| S (axial disp) | = | 0.5mm |
| da min | = | 49mm |
| Da max | = | 64mm |
| ra max | = | 0.6mm |
