SKU: N224-EU

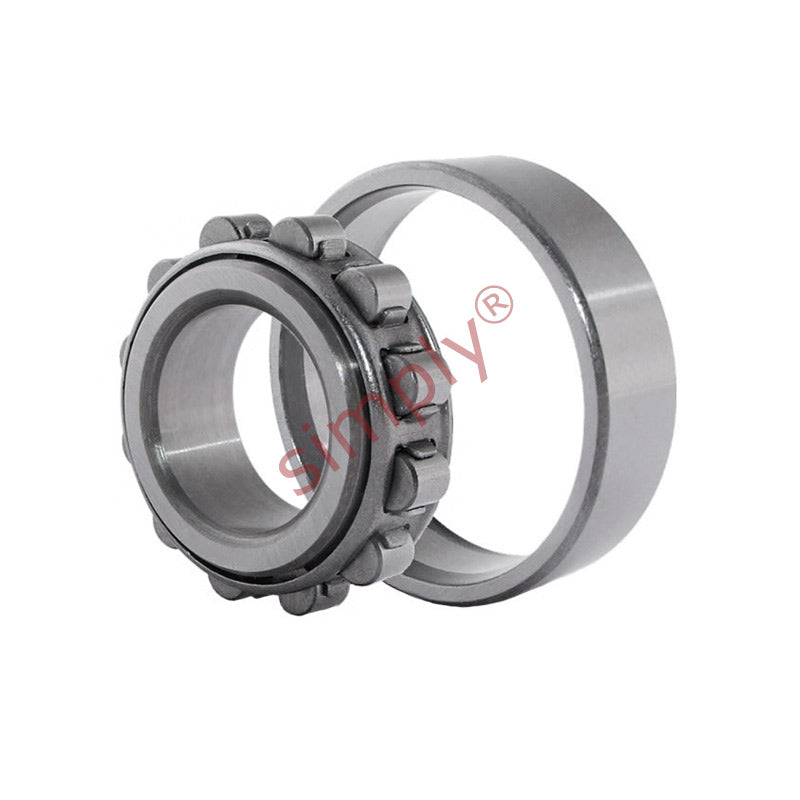

N224 Budget Single Row Cylindrical Roller Bearing 120x215x40mm
- Regular price
- €325,95 ex VAT
- Sale price
- €325,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€290,10
19
€273,80
29
€270,54
39
€267,28
49
€264,02
74
€260,76
99
€244,46
199
€241,20
249
€237,94
499
€234,68
999
€228,17
SKU:
N224-EU
N224 Budget Single Row Cylindrical Roller Bearing 120x215x40mm
- Regular price
- €325,95 ex VAT
- Sale price
- €325,95
- Regular price
-
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 120mm |
| D | = | 215mm |
| B | = | 40mm |
| Dynamic load C | = | 390 kN |
| Static load Co | = | 430 kN |
| Fatigue load limit Pu | = | 49 kN |
| Reference speed | = | 3400 rpm |
| Limiting speed | = | 3600 rpm |
| Weight | = | 5.75 kg |
| Cage options | = | M |
| d1 | = | 153mm |
| F, E | = | 195.5mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 2.1mm |
| s | = | 1.9mm |
| da min | = | 132mm |
| da max | = | 192mm |
| db min | = | 199mm |
| Da max | = | 203mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.15 |
