SKU: N1400-062

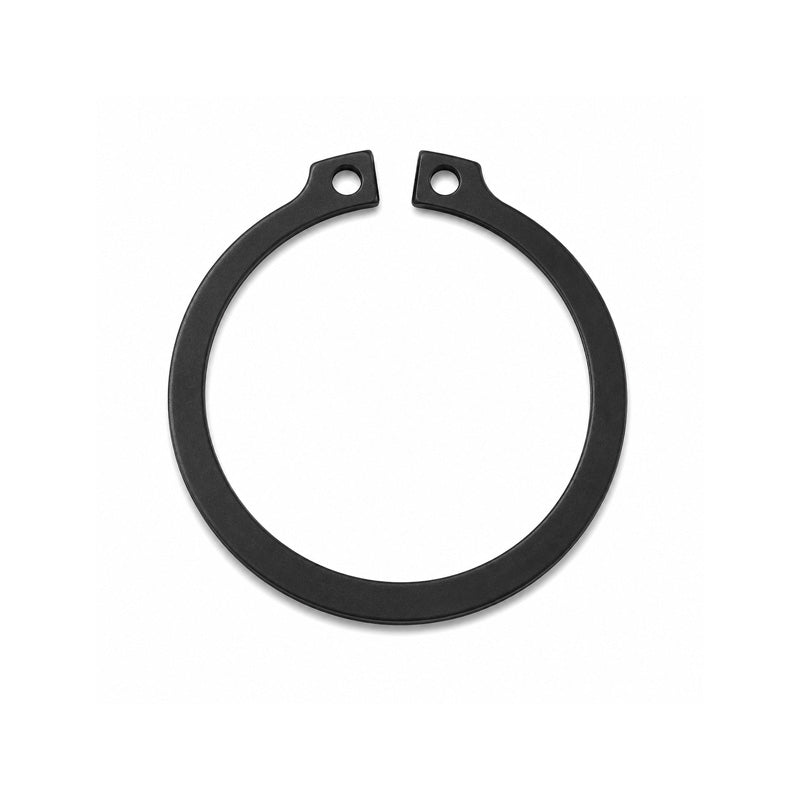

External Circlip for 0.62 inch Shaft Diameter Un-Sprung Diameter 0.579 inch
- Regular price
- €1,95 ex VAT
- Sale price
- €1,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€0,98
20+
€0,66
50+
€0,41
100+
€0,34
500+
€0,21
1000+
€0,18
SKU:
N1400-062
External Circlip for 0.62 inch Shaft Diameter Un-Sprung Diameter 0.579 inch
- Regular price
- €1,95 ex VAT
- Sale price
- €1,95
- Regular price
-
Description
|
Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
Technical

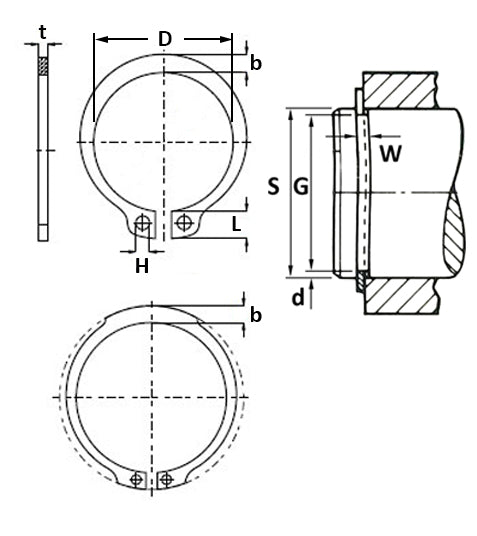

| --- | = | Clip Dimensions |
| Shaft Size (S) | = | 0.625 inch |
| Ring Thickness (t) | = | 0.035 inch |
| Thickness tolerance (t) | = | 0.002 inch |
| Unstressed diameter (D) | = | 0.579 inch |
| Unstressed diameter tolerance (D) | = | +0.005 / -0.010 inch |
| Lug (L) | = | 0.113 inch |
| Beam (b) | = | 0.08 inch |
| h | = | 0.045 inch |
| --- | = | Groove Requirements |
| Groove diameter (G) | = | 0.588 inch |
| Groove tolerance (G) | = | 0.003 inch |
| Minimum Groove Width (W) | = | 0.039 inch |
| Groove Width Tolerance (W) | = | +0.003 / -0.000 inch |
| Groove depth (d) | = | 0.018 inch |
