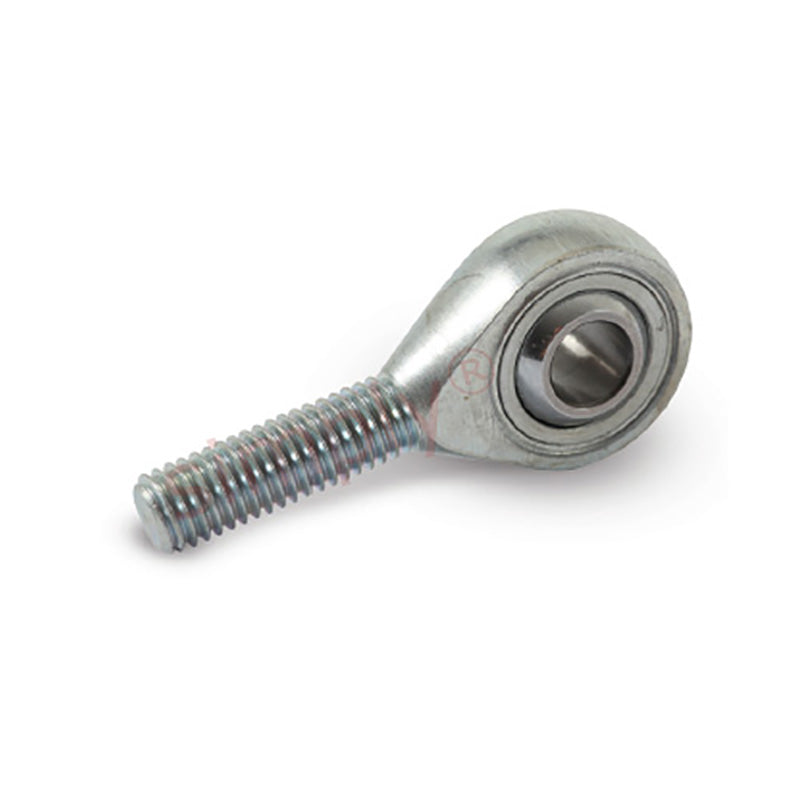

Branded MS-10F Right Hand Imperial Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End 5/8 BSF Thread - Allow 7-10 Days

SKU: MS-10F SS-MB

Branded MS-10F Right Hand Imperial Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End 5/8 BSF Thread - Allow 7-10 Days

€105,95 ex VAT
€105,95
ex VAT
Not in stock

Quantity Price Breaks

10 €94,30
19 €89,00
29 €87,94
39 €86,88
49 €85,82
74 €84,76
99 €79,46
199 €78,40
249 €77,34
499 €76,28
999 €74,17
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MS-10F Right Hand Imperial Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End 5/8 BSF Thread - Allow 7-10 Days
SKU: MS-10F SS-MB

Branded MS-10F Right Hand Imperial Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End 5/8 BSF Thread - Allow 7-10 Days

€105,95 ex VAT
€105,95
ex VAT

Description

MS SS PTFE Lined Series Maintenance Free Male Rod Ends: These stainless steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance.
Materials: Housing and inner ring: 230M07PB steel zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Liner: High strength PTFE bronze mesh composite. Ball: Bearing steel 100Cr6, heat treated, polished & electroless nickel plated and stainless steel 440C
Operating Temperature Range: Operating temperature range -200c to + 260c
Benefits: High shock loads, extended wear life, no maintenance

Technical

Bore size = 5/8 inch
Thread = 5/8 BSF
W = 0.75 inch
H = 0.562 inch
D = 1.625 inch
L1 = 2.625 inch
L2 = 1.625 inch
O = 21.3 inch
Static load = 32100 N
