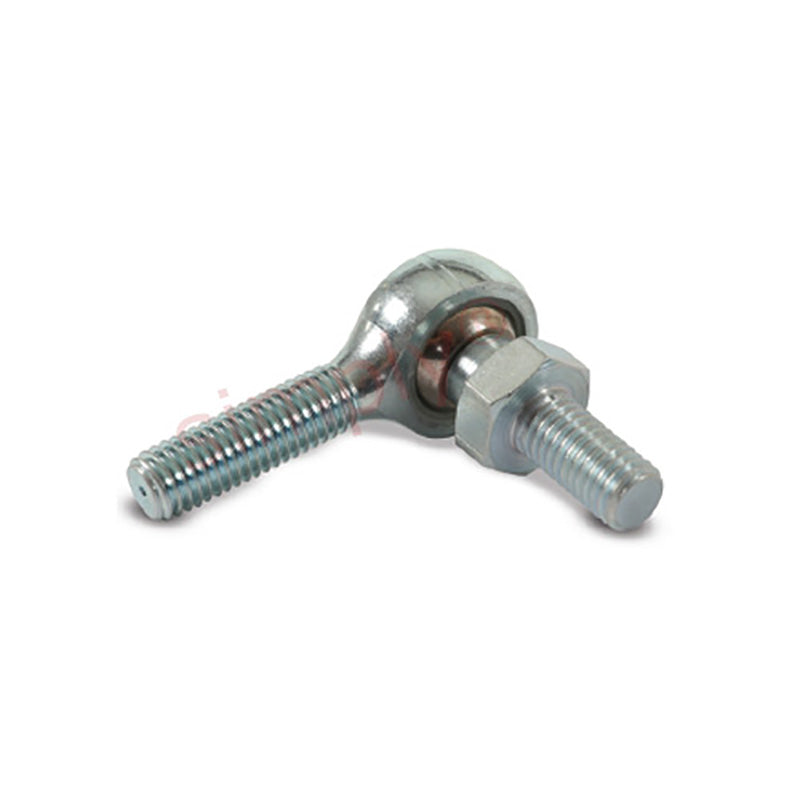

Branded MPL-M10S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M10x1.5 Thread

SKU: MPL-M10S-MB

Branded MPL-M10S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M10x1.5 Thread

€15,95 ex VAT
€15,95
ex VAT
In stock

Quantity Price Breaks

10 €14,20
19 €13,40
29 €13,24
39 €13,08
49 €12,92
74 €12,76
99 €11,96
199 €11,80
249 €11,64
499 €11,48
999 €11,17
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MPL-M10S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M10x1.5 Thread
SKU: MPL-M10S-MB

Branded MPL-M10S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M10x1.5 Thread

€15,95 ex VAT
€15,95
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = M10
Thread = M10x1.5
A = 20mm
B = 20mm
C = 18mm
K = 17mm
Static load = 4240 N
