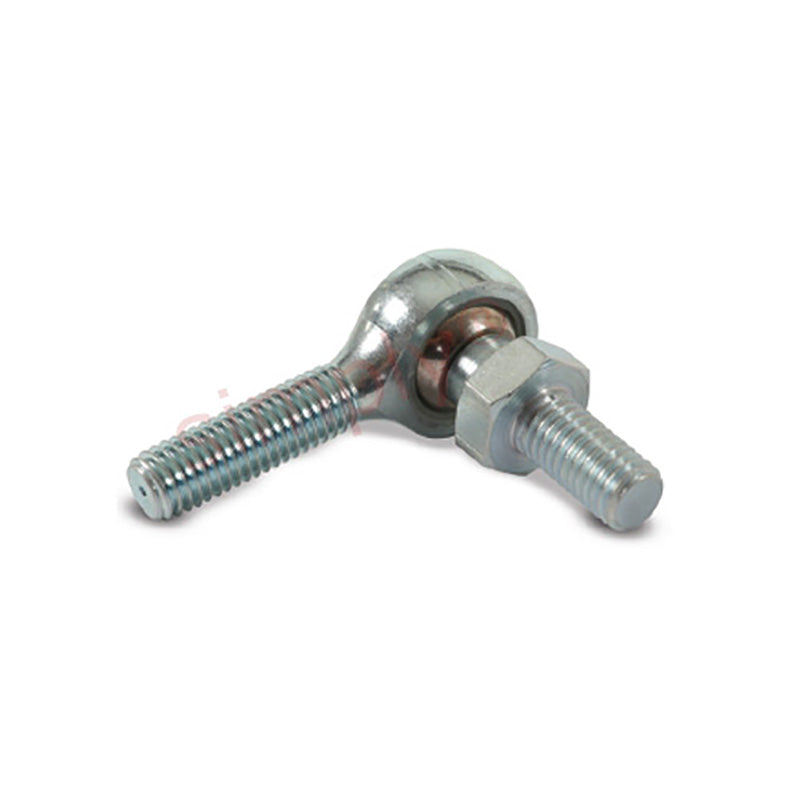

Branded MPL-M06-5S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M6x1 Thread - Allow 7-10 Days

SKU: MPL-M06-5S-MB

Branded MPL-M06-5S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M6x1 Thread - Allow 7-10 Days

€19,95 ex VAT
€19,95
ex VAT
Not in stock

Quantity Price Breaks

10 €17,76
19 €16,76
29 €16,56
39 €16,36
49 €16,16
74 €15,96
99 €14,96
199 €14,76
249 €14,56
499 €14,36
999 €13,97
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MPL-M06-5S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M6x1 Thread - Allow 7-10 Days
SKU: MPL-M06-5S-MB

Branded MPL-M06-5S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M6x1 Thread - Allow 7-10 Days

€19,95 ex VAT
€19,95
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = M5
Thread = M6x1
A = 12mm
B = 12mm
C = 10mm
K = 10mm
Static load = 1200 N
