SKU: MPL-03-MB

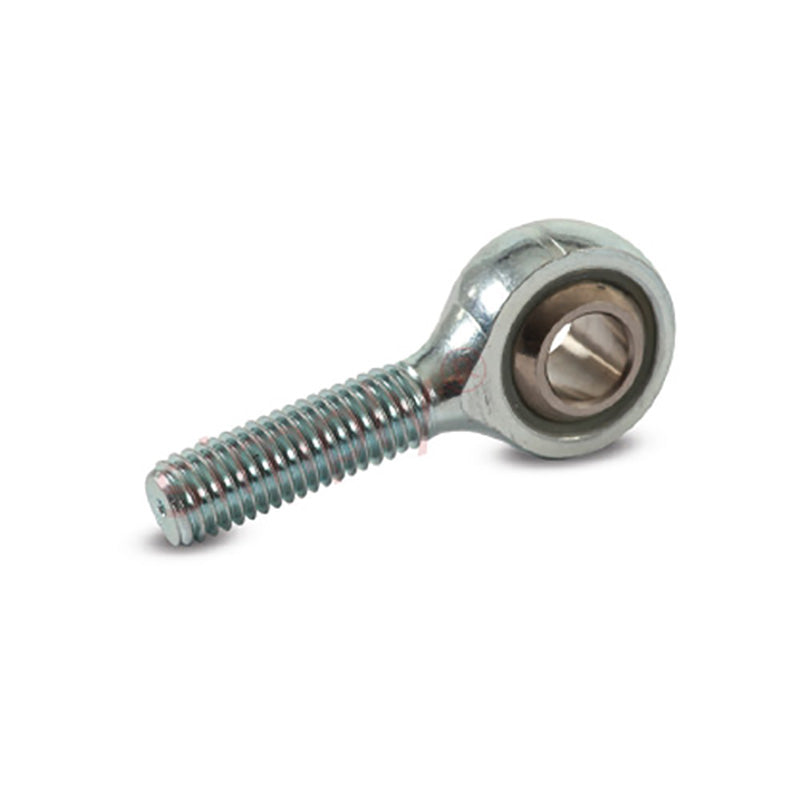

Branded MPL-03 Left Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/16 UNF Thread - Allow 7-10 Days
- Regular price
- €11,95 ex VAT
- Sale price
- €11,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€10,64
19
€10,04
29
€9,92
39
€9,80
49
€9,68
74
€9,56
99
€8,96
199
€8,84
249
€8,72
499
€8,60
999
€8,37
SKU:
MPL-03-MB
Branded MPL-03 Left Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/16 UNF Thread - Allow 7-10 Days
- Regular price
- €11,95 ex VAT
- Sale price
- €11,95
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 3/16 inch |
| Thread | = | 3/16 UNF |
| W | = | 0.312 inch |
| H | = | 0.25 inch |
| D | = | 0.625 inch |
| L1 | = | 1.25 inch |
| L2 | = | 0.75 inch |
| O | = | 0.306 inch |
| Static load | = | 5340 N |
