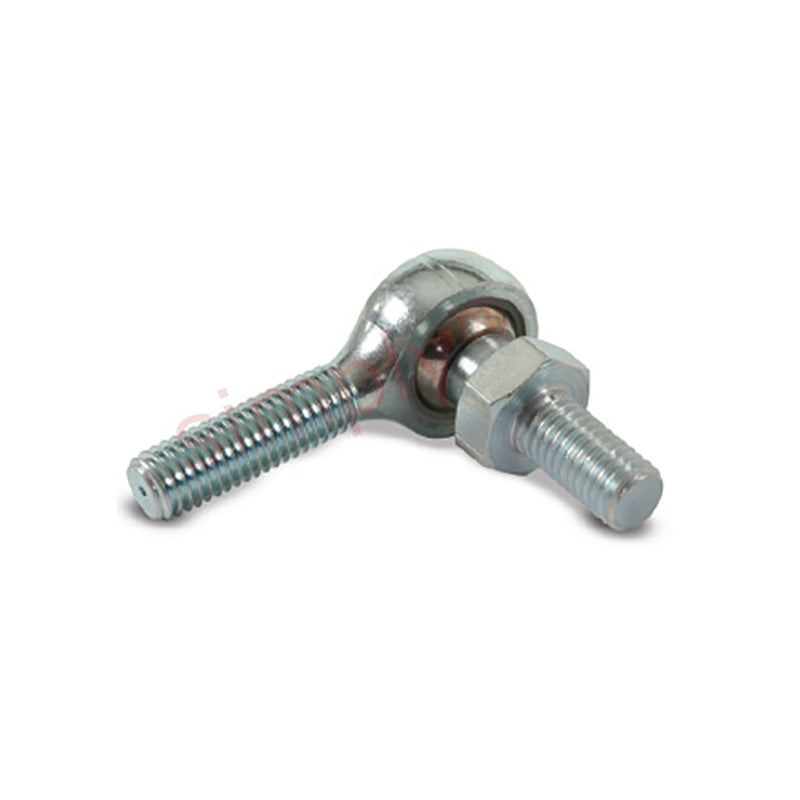

Branded MP-05-4S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days

SKU: MP-05-4S-MB

Branded MP-05-4S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days

€30,95 ex VAT
€30,95
ex VAT
Not in stock

Quantity Price Breaks

10 €27,55
19 €26,00
29 €25,69
39 €25,38
49 €25,07
74 €24,76
99 €23,21
199 €22,90
249 €22,59
499 €22,28
999 €21,67
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MP-05-4S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days
SKU: MP-05-4S-MB

Branded MP-05-4S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days

€30,95 ex VAT
€30,95
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = 1/4 UNF
Thread = 5/16 UNF
A = 0.687 inch
B = 0.547 inch
C = 0.594 inch
K = 0.437 inch
Static load = 1930 N
