SKU: MH-M08-MB

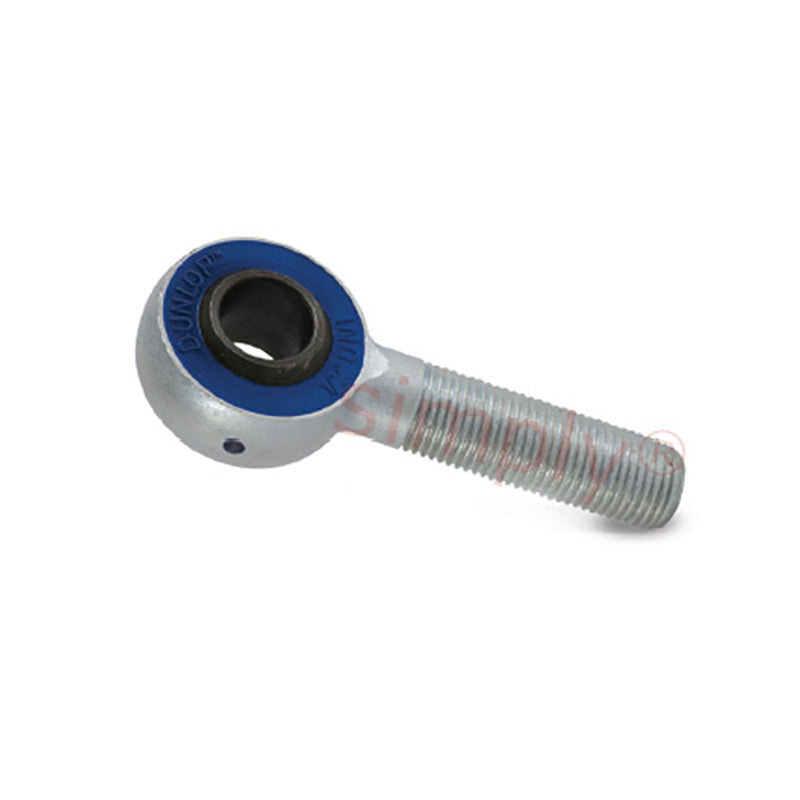

Branded MH-M08 Right Hand Metric Steel / Polyurethane Lined Maintenance Free Plain Male Rod End M8x1.25 Thread
- Regular price
- €15,95 ex VAT
- Sale price
- €15,95
- Regular price
-
In stock
Quantity Price Breaks
10
€14,20
19
€13,40
29
€13,24
39
€13,08
49
€12,92
74
€12,76
99
€11,96
199
€11,80
249
€11,64
499
€11,48
999
€11,17
SKU:
MH-M08-MB
Branded MH-M08 Right Hand Metric Steel / Polyurethane Lined Maintenance Free Plain Male Rod End M8x1.25 Thread
- Regular price
- €15,95 ex VAT
- Sale price
- €15,95
- Regular price
-
Description
|
MH Series Maintenance Free Rod Ends with Male Thread: These MH series rod ends incorporate a polyurethane bearing race that provides ultra-smooth operation. A nitrotec surface protected ball with a PTFE lubricant provide superior shock load and extended wear properties, combined with excellent chemical and corrosion resistance. The unique innovative captive body design prevents detachment through excessive axial loads. For optimum performance, ensure that the rod end is mounted with the moulded lettering facing away from the direction of pull, available in both metric and imperial sizes. Temperature range from -40c to + 80c Benefits: Low friction, high shock loads, extended wear life, no maintenance |
Technical
| Bore size | = | 8mm |
| Thread | = | M8x1.25 |
| W | = | 12mm |
| H | = | 9mm |
| D | = | 24mm |
| L1 | = | 42mm |
| L2 | = | 25mm |
| O | = | 10.35mm |
| Static load | = | 17652 N |
