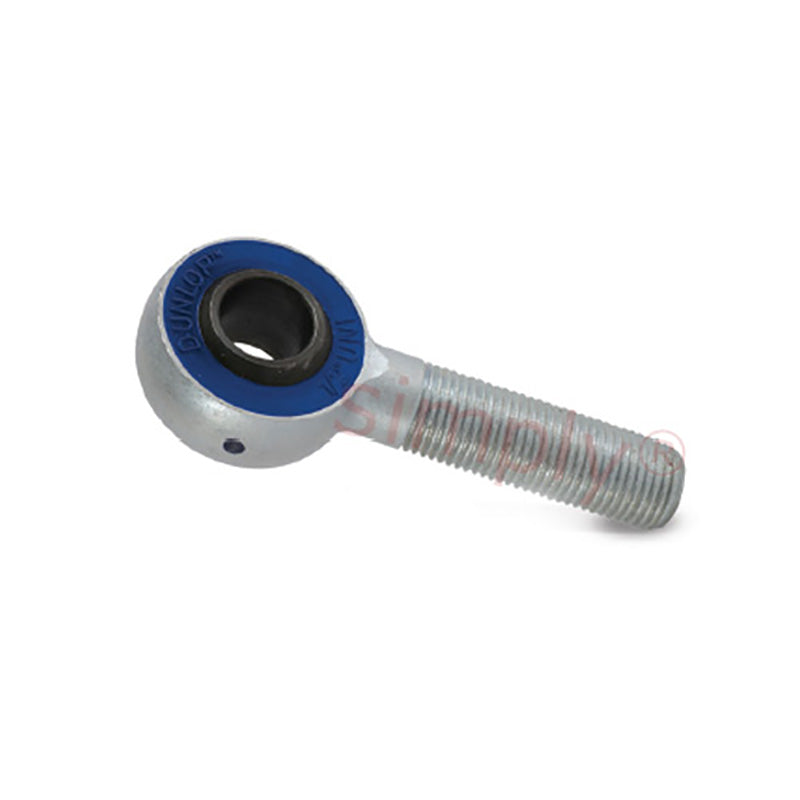

Branded MH-M08-6 Right Hand Metric Steel / Polyurethane Lined Maintenance Free Plain Male Rod End M8x1.25 Thread

SKU: MH-M08-6-MB

Branded MH-M08-6 Right Hand Metric Steel / Polyurethane Lined Maintenance Free Plain Male Rod End M8x1.25 Thread

€15,95 ex VAT
€15,95
ex VAT
In stock

Quantity Price Breaks

10 €14,20
19 €13,40
29 €13,24
39 €13,08
49 €12,92
74 €12,76
99 €11,96
199 €11,80
249 €11,64
499 €11,48
999 €11,17
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MH-M08-6 Right Hand Metric Steel / Polyurethane Lined Maintenance Free Plain Male Rod End M8x1.25 Thread
SKU: MH-M08-6-MB

Branded MH-M08-6 Right Hand Metric Steel / Polyurethane Lined Maintenance Free Plain Male Rod End M8x1.25 Thread

€15,95 ex VAT
€15,95
ex VAT

Description

MH Series Maintenance Free Rod Ends with Male Thread: These MH series rod ends incorporate a polyurethane bearing race that provides ultra-smooth operation. A nitrotec surface protected ball with a PTFE lubricant provide superior shock load and extended wear properties, combined with excellent chemical and corrosion resistance. The unique innovative captive body design prevents detachment through excessive axial loads. For optimum performance, ensure that the rod end is mounted with the moulded lettering facing away from the direction of pull, available in both metric and imperial sizes. Temperature range from -40c to + 80c
Benefits: Low friction, high shock loads, extended wear life, no maintenance

Technical

Bore size = 6mm
Thread = M8x1.25
W = 12mm
H = 9mm
D = 24mm
L1 = 42mm
L2 = 25mm
O = 10.35mm
Static load = 17652 N
