RHP MFC60 Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
SKU: MFC60-RHP

RHP MFC60 Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert

€245,95 ex VAT
€245,95
ex VAT

Description

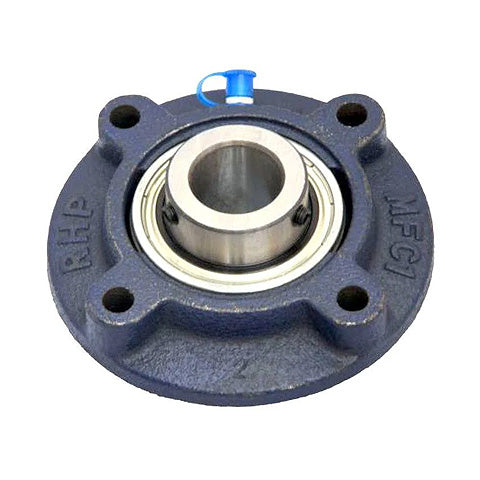

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert

Technical

Bore = 60mm
L = 193.7mm
H = 139.7mm
J = 165.1mm
G = 12mm
A1 = 46.02mm
A4 = 15.9mm
A5 = 12.7mm
B = 74.63mm
s = 30.23mm
d1 = 87mm
Dynamic load = 61000 N
Static load = 45000 N
Rec max speed = 2450 rpm
Weight = 4.5 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1070-60G+insonly"
> = 1070-60G Click Here<
/a> =
Casting group = 7
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
