SKU: MFC3.1/4-RHP

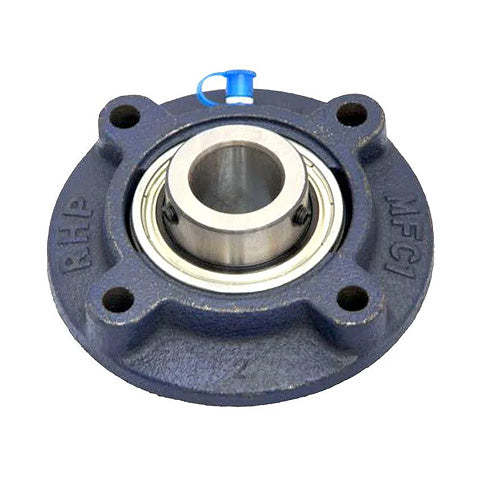

RHP MFC3-1/4 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-1/4 inch Insert
- Regular price
- €373,95 ex VAT
- Sale price
- €373,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€332,82
19+
€314,12
29+
€310,38
39+
€306,64
49+
€302,90
74+
€299,16
99+
€280,46
199+
€276,72
249+
€272,98
499+
€269,24
999+
€261,77
SKU:
MFC3.1/4-RHP
RHP MFC3-1/4 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-1/4 inch Insert
- Regular price
- €373,95 ex VAT
- Sale price
- €373,95
- Regular price
-
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 3-1/4 inch |
| L | = | 8.748 inch |
| H | = | 6.375 inch |
| J | = | 7.5 inch |
| G | = | 0.625 inch |
| A1 | = | 2 inch |
| A4 | = | 0.657 inch |
| A5 | = | 0.5 inch |
| B | = | 3.25 inch |
| s | = | 1.314 inch |
| d1 | = | 3.878 inch |
| Dynamic load | = | 71500 N |
| Static load | = | 54500 N |
| Rec max speed | = | 2150 rpm |
| Weight | = | 5.4 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1080-3-1/4G+insonly" |
| > | = | 1080-3-1/4G Click Here< |
| /a> | = | |
| Casting group | = | 9 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
