SKU: MFC2.11/16-RHP

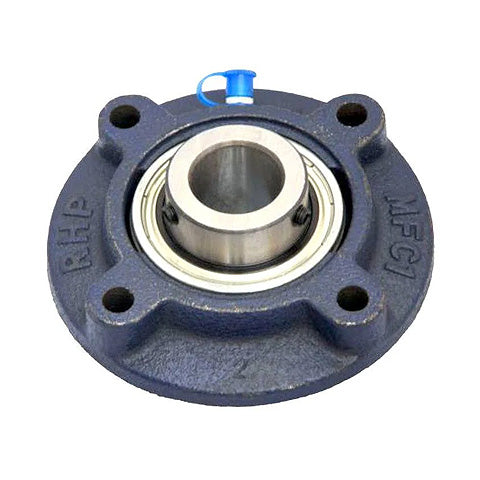

RHP MFC2-11/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-11/16 inch Insert
- Regular price
- €308,95 ex VAT
- Sale price
- €308,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€274,97
19+
€259,52
29+
€256,43
39+
€253,34
49+
€250,25
74+
€247,16
99+
€231,71
199+
€228,62
249+
€225,53
499+
€222,44
999+
€216,27
SKU:
MFC2.11/16-RHP
RHP MFC2-11/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-11/16 inch Insert
- Regular price
- €308,95 ex VAT
- Sale price
- €308,95
- Regular price
-
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 2-11/16 inch |
| L | = | 8.748 inch |
| H | = | 6.375 inch |
| J | = | 7.5 inch |
| G | = | 0.625 inch |
| A1 | = | 2 inch |
| A4 | = | 0.827 inch |
| A5 | = | 0.5 inch |
| B | = | 3.062 inch |
| s | = | 1.314 inch |
| d1 | = | 3.622 inch |
| Dynamic load | = | 66000 N |
| Static load | = | 49500 N |
| Rec max speed | = | 2300 rpm |
| Weight | = | 5.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1075-2-11/16G+insonly" |
| > | = | 1075-2-11/16G Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
